PTCCL05H131EBE
Manufacturer:
Vishay
Mfr.Part #:
PTCCL05H131EBE
Datasheet:
Description:

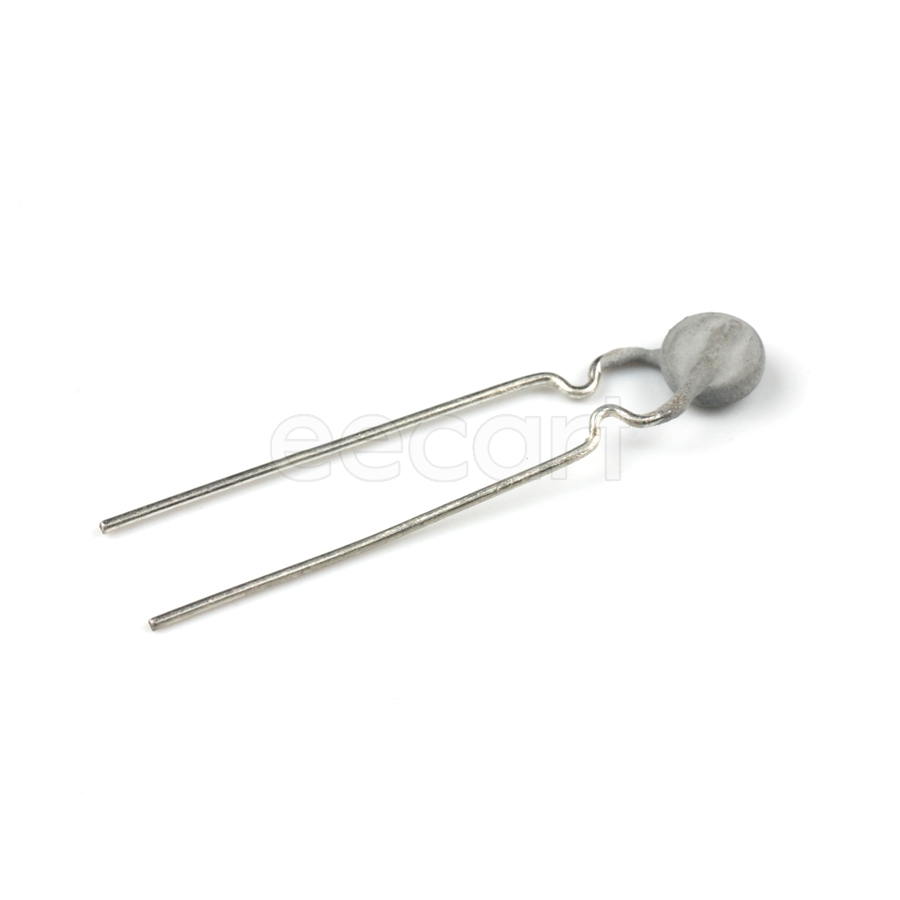

PTC Resettable Fuses 5.00mmD×4.00mmH Through Hole Hold Current:130 mA Trip Current:195 mA
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 10 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 2 |
| Resistance | 25 Ω |
| Height | 10 mm |
| Packaging | Bulk |
| Depth | 4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Max Current Rating | 1.2 A |
| Operating Supply Voltage | 30 V |
| Max Supply Voltage | 60 V |
| Hold Current | 130 mA |
| Trip Current | 195 mA |
| Schedule B | 8533400080 |
| Lead Spacing | 5 mm |
Stock: 345
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.46850 | $4.68500 |
| 25 | $0.43858 | $10.96450 |
| 50 | $0.41806 | $20.90300 |
| 100 | $0.39925 | $39.92500 |
| 300 | $0.37953 | $113.85900 |
| 500 | $0.36078 | $180.39000 |
| 1000 | $0.34197 | $341.97000 |
