PUSB3FR4Z
Manufacturer:
Nexperia
Mfr.Part #:
PUSB3FR4Z
Datasheet:
Description:

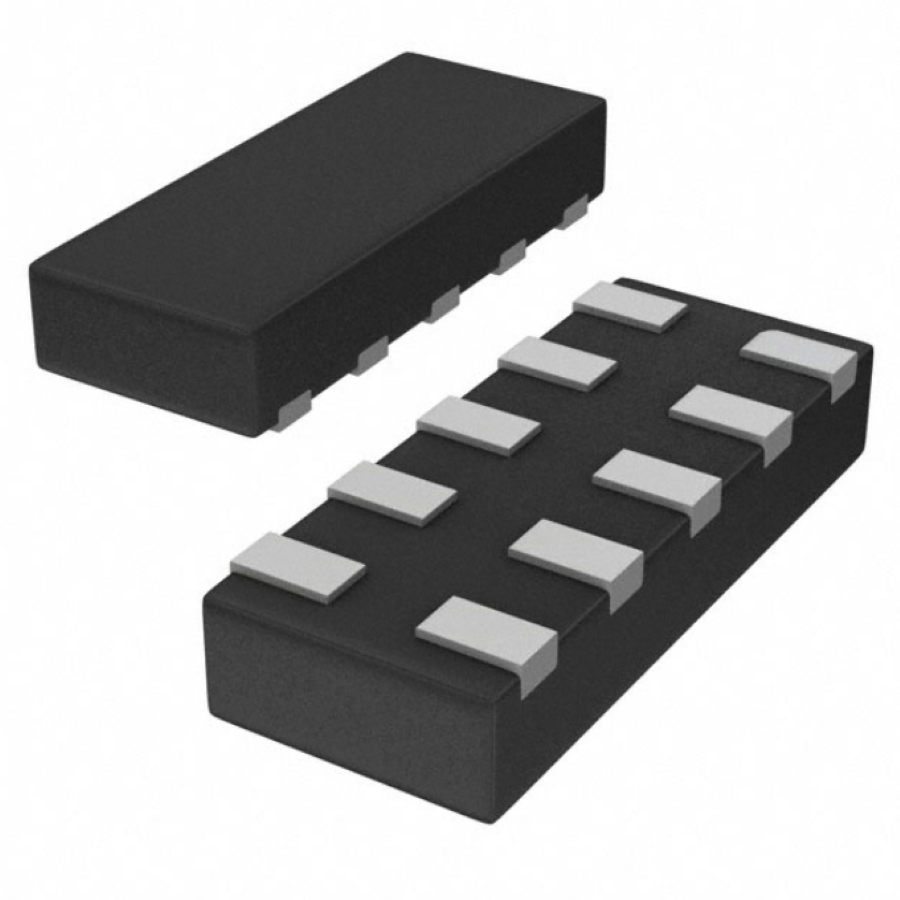

TVS Diodes DFN2510-10 SMD/SMT Working Voltage:3.3 V Breakdown Voltage:5.5 V Clamping Voltage:3 V Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 340 fF |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Contact Plating | Gold, Silver |
| Working Voltage | 3.3 V |
| Output Current | 1.4 A |
| Operating Supply Voltage | 3.3 V |
| Peak Pulse Current | 5 A |
| Number of Channels | 4 |
| Breakdown Voltage | 5.5 V |
| Direction(Counting Sequence) | Unidirectional |
| Clamping Voltage | 3 V |
| Schedule B | 8536300000 |
| Voltage ESD Contact | 15 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 0.29 pF |
Stock: 25444
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.08327 | $0.83270 |
| 50 | $0.07504 | $3.75200 |
| 100 | $0.06763 | $6.76300 |
| 500 | $0.06386 | $31.93000 |
| 1000 | $0.05694 | $56.94000 |
| 3000 | $0.05272 | $158.16000 |
| 5000 | $0.04881 | $244.05000 |
| 10000 | $0.04377 | $437.70000 |
