PUSBM5V5X4-TL,115
Manufacturer:
Nexperia
Mfr.Part #:
PUSBM5V5X4-TL,115
Datasheet:
Description:

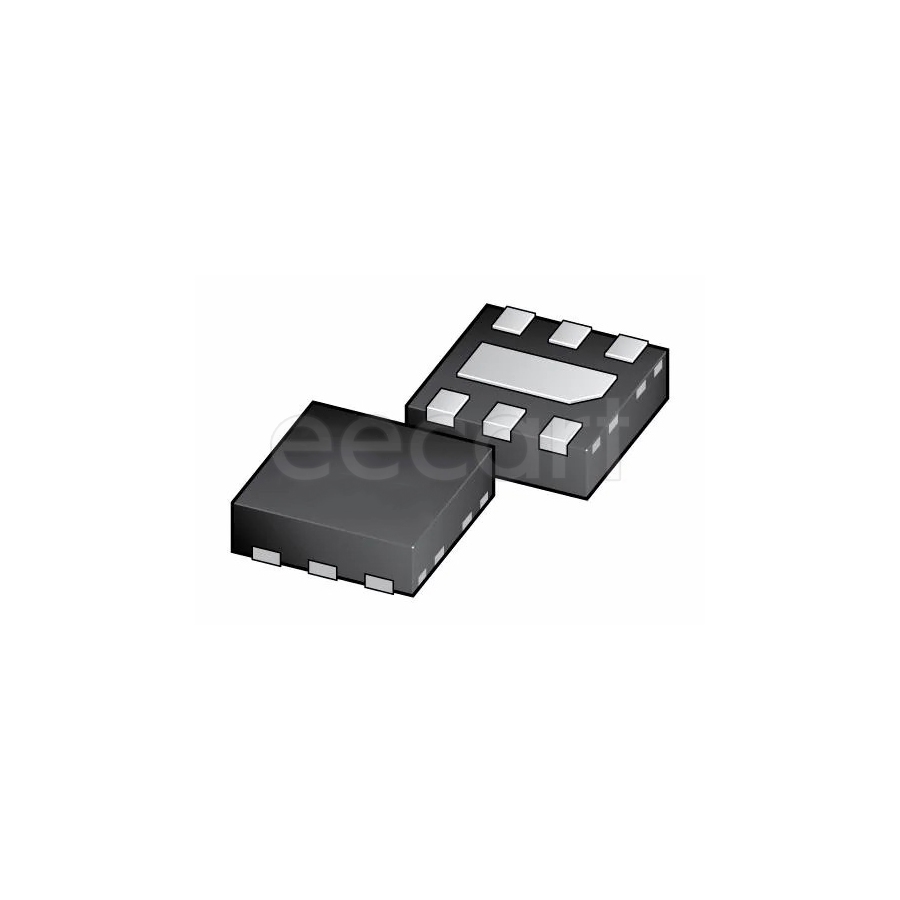

ESD and Circuit Protection ICs DFN1616-6 SMD/SMT Working Voltage:5.5 V Breakdown Voltage:6.4 V 35 W
| Parameter | Value |
|---|---|
| Capacitance | 220 pF |
| Length | 1.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 6 |
| Leakage Current | 500 nA |
| Packaging | Reel |
| Depth | 1.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | EOL (Last Updated: 1 week ago) |
| Peak Pulse Current | 3 A |
| Breakdown Voltage | 6.4 V |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6.4 V |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 12 V |
| Peak Pulse Power | 35 W |
| Power Line Protection | Yes |
| Max Surge Current | 12 A |
| Number of Bidirectional Channels | 3 |
| Manufacturer Lifecycle Status | DISCONTINUATION OF DELIVERY (Last Updated: 1 week ago) |
