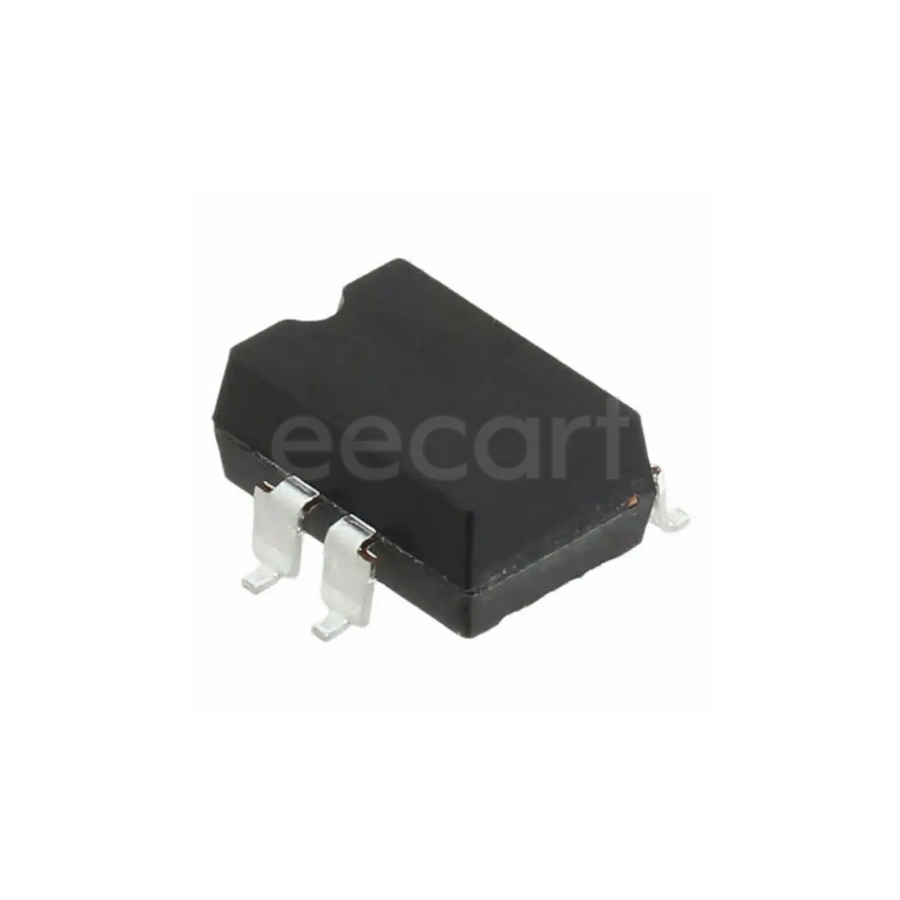

PVDZ172NSPBF
Manufacturer:
Infineon
Mfr.Part #:
PVDZ172NSPBF
Datasheet:
Description:
Solid State Relays SMD/SMT 1.5 A Height:3.93 mm Length:9.39 mm Width:6.47 mm 60 V
| Parameter | Value |
|---|---|
| Capacitance | 150 pF |
| Length | 9.39 mm |
| Width | 6.47 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 250 mΩ |
| Height | 3.93 mm |
| Circuit Type | SPST-NO (1 Form A) |
| Packaging | Tube |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 550 mA |
| Approvals | UL |
| Output Current | 1.5 A |
| Output Voltage | 60 V |
| Forward Current | 25 mA |
| Output Type | DC |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 1 |
| RMS Current (Irms) | 1.5 A |
| Throw Configuration | SPST |
| Rise Time | 2 ms |
| Isolation Voltage | 4 kV |
| Load Current | 1.5 A |
| Input Current | 25 mA |
| Max Input Current | 25 mA |
| Input Voltage | 1.2 V |
| Max Output Voltage | 60 V |
| On-State Resistance | 250 mΩ |
| Package Quantity | 2000 |
| Load Voltage | 60 V |
Stock: 421
Distributors
pcbx
pcbxUnit Price$5.92039
Ext.Price$5.92039
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.92039 | $5.92039 |
| 10 | $5.54507 | $55.45070 |
| 25 | $5.11248 | $127.81200 |
| 50 | $5.02406 | $251.20300 |
| 100 | $4.93722 | $493.72200 |
| 300 | $4.73295 | $1419.88500 |
| 500 | $4.53711 | $2268.55500 |
| 1000 | $4.39947 | $4399.47000 |
| 3000 | $4.31825 | $12954.75000 |
