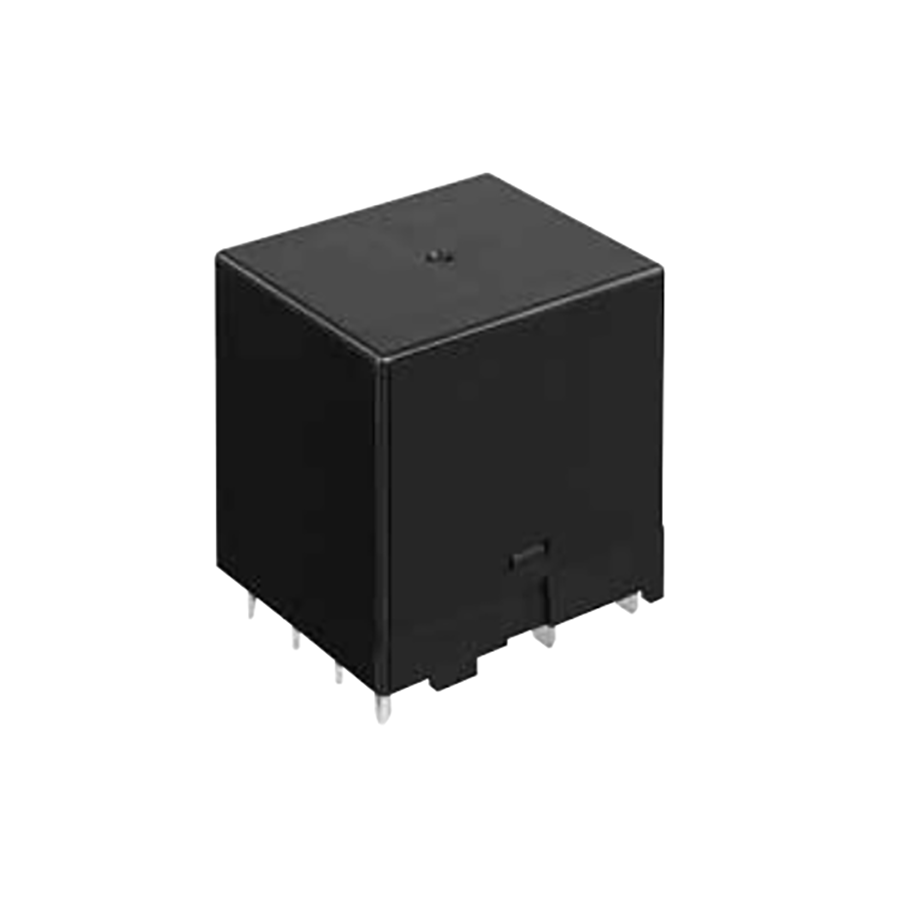

AHES3291
Manufacturer:
Panasonic
Mfr.Part #:
AHES3291
Datasheet:
Description:
Power Relays Through Hole 157 mA 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 36 mm |
| Width | 30 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Height | 40 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Coil Voltage (DC) | 12 V |
| Coil Current | 157 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Contact Current Rating | 35 A |
| Termination Style | PC Pin |
| Switching Voltage | 277 VAC |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 600 mV |
Stock: 103
Distributors
pcbx
pcbxUnit Price$13.97468
Ext.Price$13.97468
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.97468 | $13.97468 |
| 10 | $12.44692 | $124.46920 |
| 25 | $10.13177 | $253.29425 |
| 50 | $9.73166 | $486.58300 |
| 100 | $9.26829 | $926.82900 |
| 300 | $9.05292 | $2715.87600 |
| 500 | $8.84254 | $4421.27000 |
| 1000 | $8.83655 | $8836.55000 |
