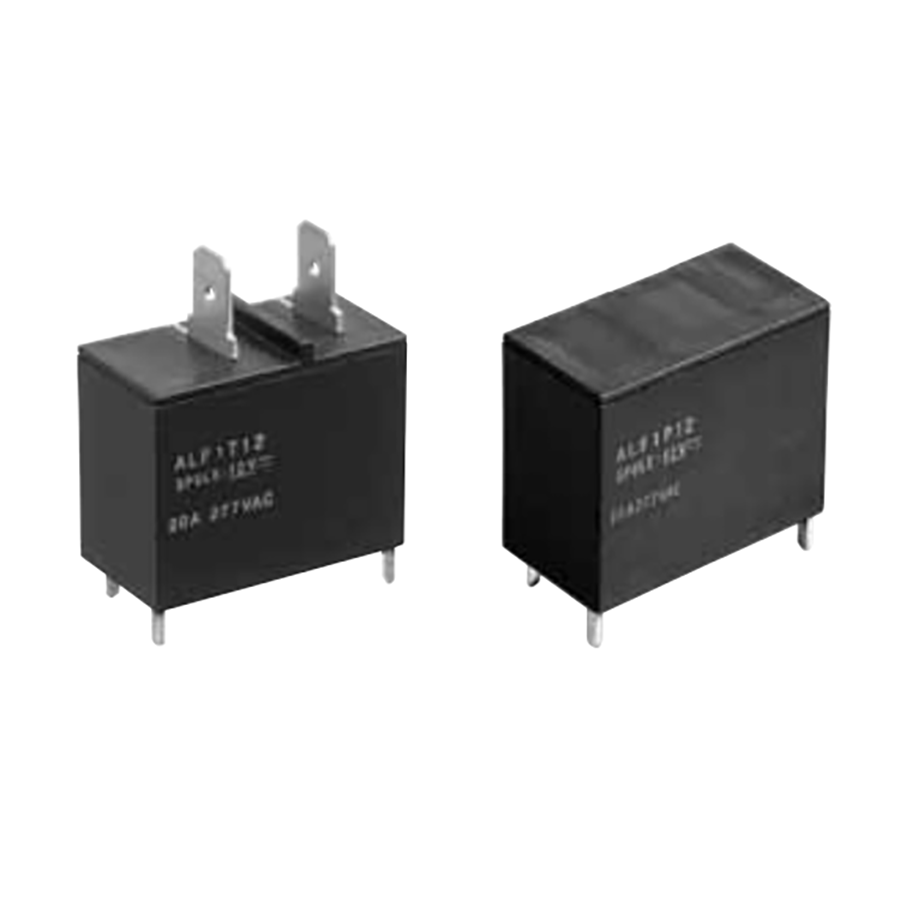

ALF1P05
Manufacturer:
Panasonic
Mfr.Part #:
ALF1P05
Datasheet:
Description:
Power Relays Through Hole 180 mA 27.8 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Length | 30.1 mm |
| Width | 15.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 23.3 mm |
| Packaging | Box |
| Depth | 15.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 23 g |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Max Current Rating | 25 A |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 180 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 27.8 Ω |
| Relay Type | General Purpose |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Contact Current Rating | 25 A |
| switching current | 20 A |
| power consumption | 900 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC |
| Test Voltage | 5 kV |
| Coil Power | 900 mW |
| Switching Capacity | 6.25 kW |
| Must Operate Voltage | 3.5 V |
| Must Release Voltage | 500 mV |
Stock: 506
Distributors
pcbx
pcbxUnit Price$1.89025
Ext.Price$1.89025
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89025 | $1.89025 |
| 10 | $1.63377 | $16.33770 |
| 25 | $1.60181 | $40.04525 |
| 50 | $1.57050 | $78.52500 |
| 100 | $1.36447 | $136.44700 |
| 300 | $1.29021 | $387.06300 |
| 500 | $1.21999 | $609.99500 |
| 1000 | $1.19519 | $1195.19000 |
