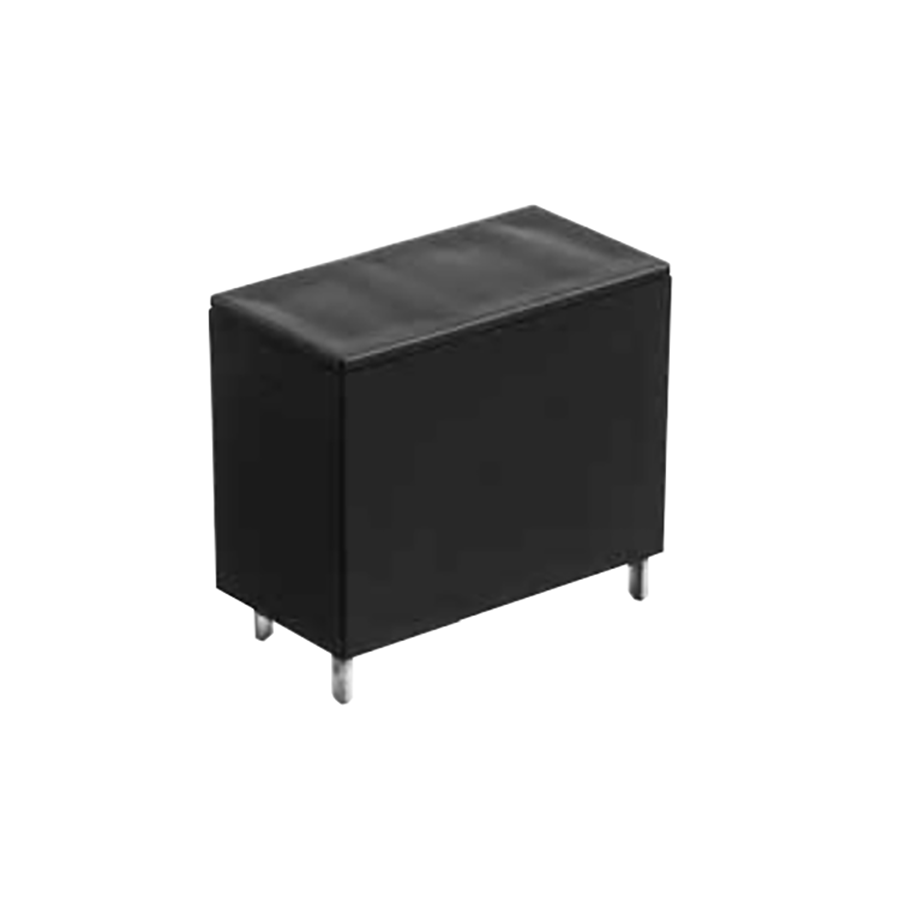

ALFG2PF121
Manufacturer:
Panasonic
Mfr.Part #:
ALFG2PF121
Datasheet:
Description:
Power Relays Through Hole 117 mA 103 Ω 12 V High Capacity
| Parameter | Value |
|---|---|
| Length | 31.1 mm |
| Width | 15.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Power Rating | 1.4 W |
| Height | 23.3 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver, Tin |
| Max Current Rating | 33 A |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 117 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 103 Ω |
| Relay Type | High Capacity |
| Operate Time | 20 ms |
| Contact Current Rating | 31 A |
| power consumption | 1.4 W |
| Termination Style | PC Pin |
| Switching Voltage | 250 V |
| Must Operate Voltage | 8.4 V |
| Must Release Voltage | 1.2 V |
Stock: 1247
Distributors
pcbx
pcbxUnit Price$4.91243
Ext.Price$4.91243
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.91243 | $4.91243 |
| 10 | $4.73717 | $47.37170 |
| 25 | $4.33706 | $108.42650 |
| 50 | $4.26183 | $213.09150 |
| 100 | $4.08058 | $408.05800 |
| 300 | $3.98237 | $1194.71100 |
| 500 | $3.88651 | $1943.25500 |
| 1000 | $3.80529 | $3805.29000 |
