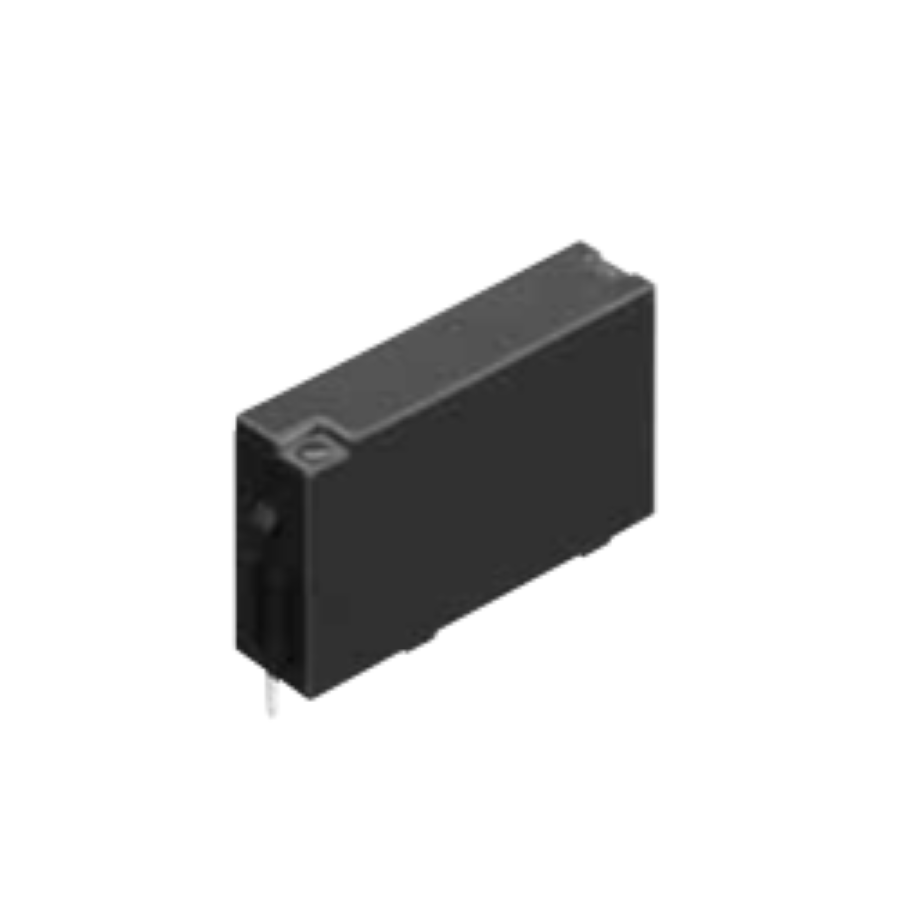

APAN3124
Manufacturer:
Panasonic
Mfr.Part #:
APAN3124
Datasheet:
Description:
Power Relays Through Hole 4.6 mA 5.236 kΩ 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.8 mm |
| Packaging | Tube |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 5 A |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 90 °C |
| Throw Configuration | SPST |
| Contact Resistance | 30 mΩ |
| Coil Voltage (DC) | 24 V |
| Coil Current | 4.6 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 5.236 kΩ |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 5 A |
| switching current | 5 A |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 110 VDC |
| Coil Power | 110 mW |
| Must Operate Voltage | 16.8 V |
| Must Release Voltage | 1.2 V |
Stock: 3799
Distributors
pcbx
pcbxUnit Price$3.26669
Ext.Price$3.26669
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.26669 | $3.26669 |
| 10 | $2.91018 | $29.10180 |
| 25 | $2.32199 | $58.04975 |
| 50 | $2.31442 | $115.72100 |
| 100 | $2.30688 | $230.68800 |
| 300 | $2.29936 | $689.80800 |
| 500 | $2.29187 | $1145.93500 |
| 1000 | $2.28437 | $2284.37000 |
| 3000 | $2.27753 | $6832.59000 |
