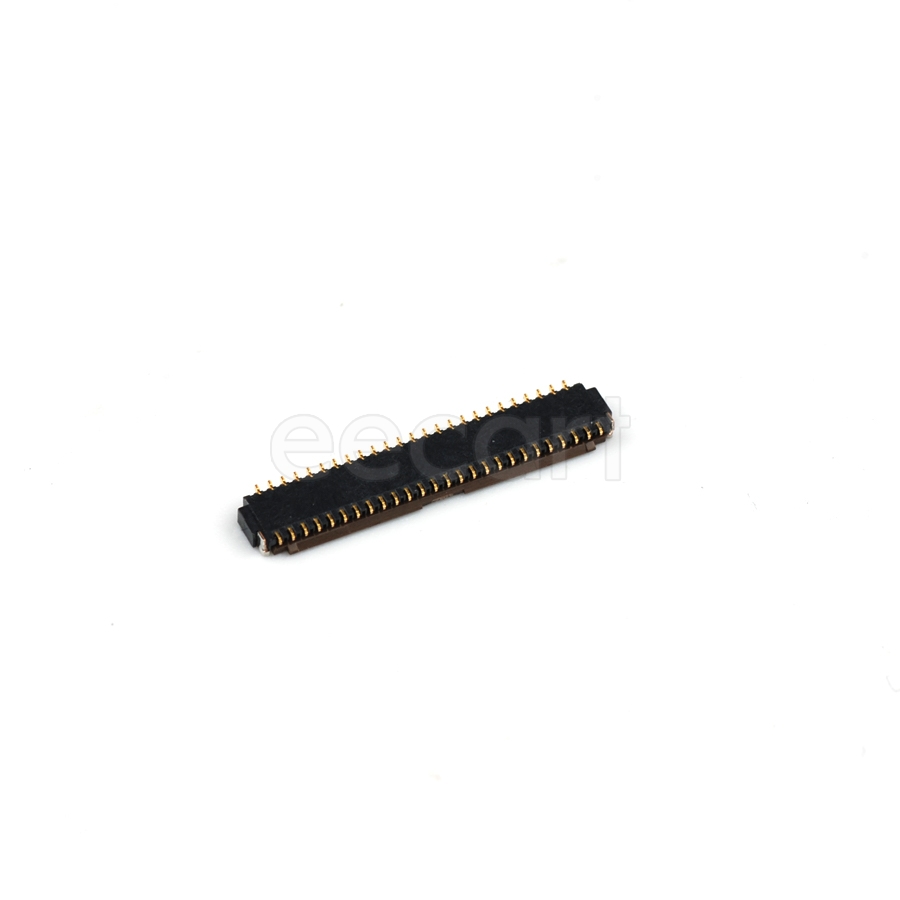

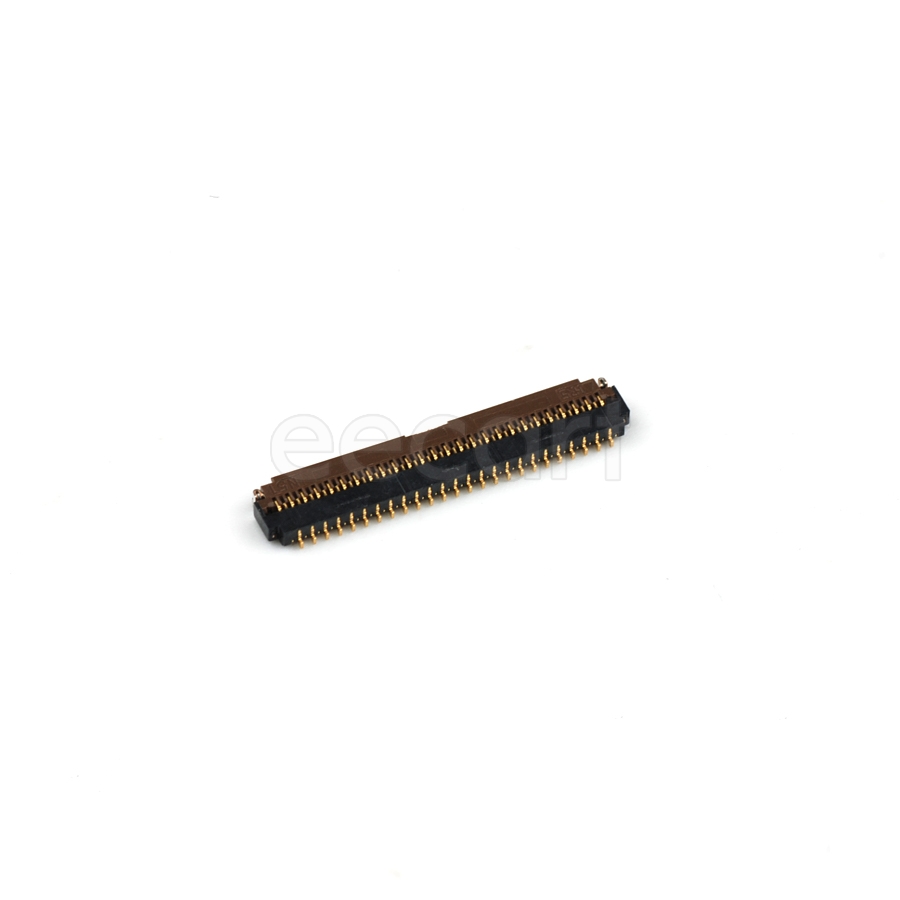

AYF333135
Manufacturer:
Panasonic
Mfr.Part #:
AYF333135
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:31 200 mA 50 V
| Parameter | Value |
|---|---|
| Length | 10.8 mm |
| Termination | IDT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Box |
| Voltage Rating | 50 V |
| Depth | 3.15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Pitch | 300 µm |
| Current Rating | 200 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Number of Contacts | 31 |
| Number of Positions | 31 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Liquid Crystal Polymer, Polymer |
Stock: 2382
Distributors
pcbx
pcbxUnit Price$0.91319
Ext.Price$0.91319
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91319 | $0.91319 |
| 10 | $0.77390 | $7.73900 |
| 25 | $0.72549 | $18.13725 |
| 50 | $0.69083 | $34.54150 |
| 100 | $0.65773 | $65.77300 |
| 300 | $0.62141 | $186.42300 |
| 500 | $0.58710 | $293.55000 |
| 1000 | $0.55906 | $559.06000 |
| 3000 | $0.52822 | $1584.66000 |
| 5000 | $0.49908 | $2495.40000 |
