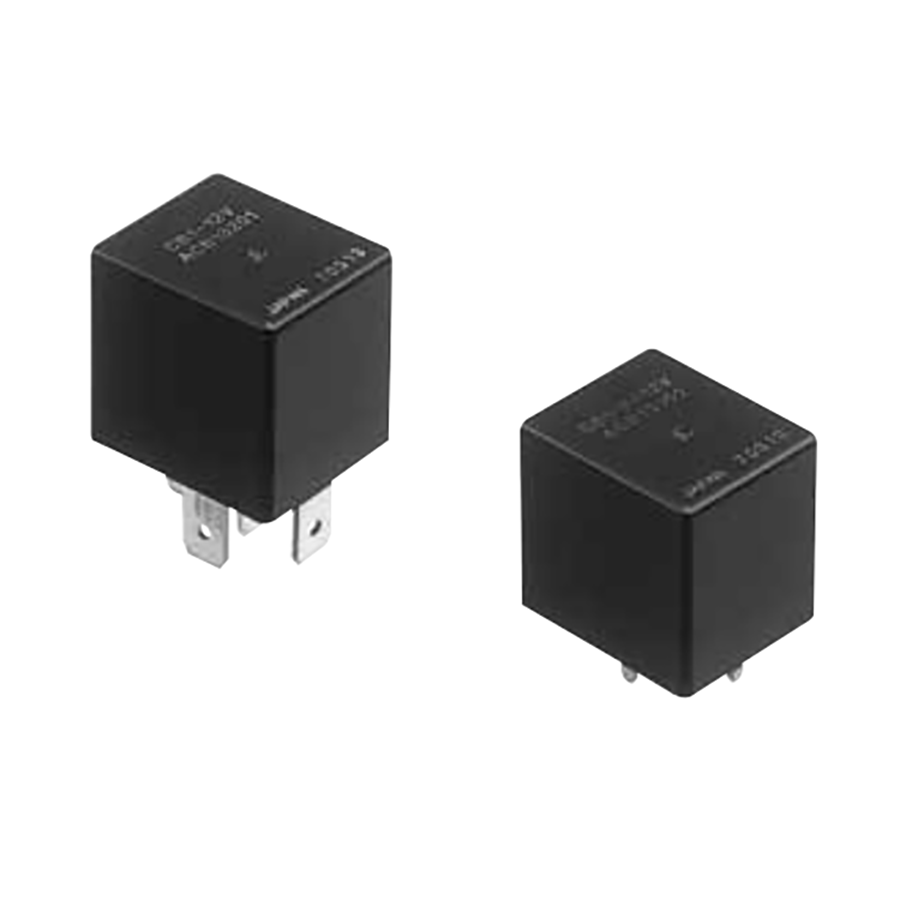

CB1-M-12V
Manufacturer:
Panasonic
Mfr.Part #:
CB1-M-12V
Datasheet:
Description:
Relay Sockets / Hardware Through Hole Quick Connect
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 14 V |
| Length | 30 mm |
| Termination | Quick Connect |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 25 mm |
| Packaging | Bulk |
| Depth | 22 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Cadmium, Silver |
| Current Rating | 40 A |
| Max Voltage Rating (DC) | 14 V |
| Throw Configuration | SPDT |
| Coil Voltage (DC) | 12 V |
| Coil Current | 117 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 103 Ω |
| Relay Type | Automotive |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Contact Current Rating | 40 A |
| power consumption | 1.4 W |
| Coil Power | 1.4 W |
Stock: 1078
Distributors
pcbx
pcbxUnit Price$3.09741
Ext.Price$3.09741
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.09741 | $3.09741 |
| 10 | $2.79134 | $27.91340 |
| 25 | $2.66567 | $66.64175 |
| 50 | $2.57248 | $128.62400 |
| 100 | $2.48443 | $248.44300 |
| 300 | $2.38543 | $715.62900 |
| 500 | $2.29036 | $1145.18000 |
| 1000 | $2.21513 | $2215.13000 |
