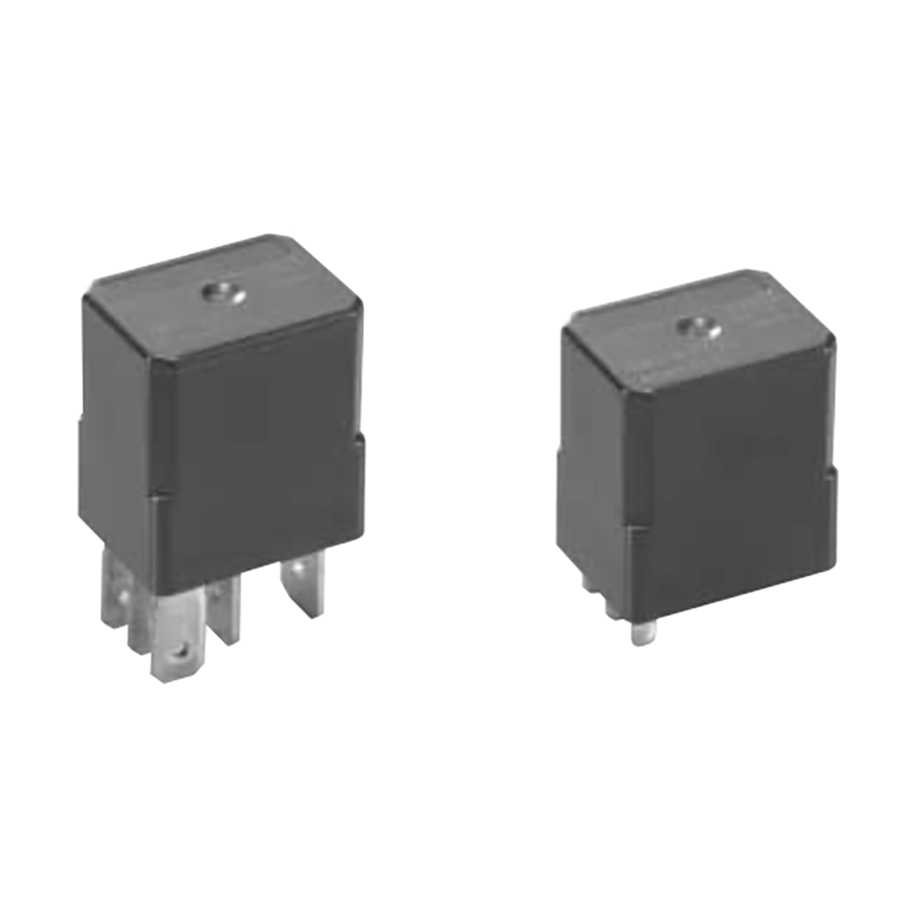

CM1-P-24V
Manufacturer:
Panasonic
Mfr.Part #:
CM1-P-24V
Datasheet:
Description:
Relays PCB Mount Coil Current:75 mA Contact Current Rating:15 A SPDT Coil Voltage (DC):24 V Automotive 1.8 W
| Parameter | Value |
|---|---|
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Circuit Type | SPDT (1 Form C) |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 20 g |
| Contact Material(Contact Finish) | Cadmium, Silver |
| Current Rating | 15 A |
| Max Voltage Rating (DC) | 28 V |
| Throw Configuration | SPDT |
| Coil Voltage (DC) | 24 V |
| Coil Current | 75 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 320 Ω |
| Relay Type | Automotive |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 15 A |
| power consumption | 1.8 W |
| Termination Style | PC Pin |
| Switching Voltage | 28 VDC |
| Coil Power | 1.8 W |
| Must Operate Voltage | 14 V |
| Must Release Voltage | 2.4 V |
Stock: 12
Distributors
pcbx
pcbxUnit Price$3.70441
Ext.Price$3.70441
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.70441 | $3.70441 |
| 10 | $3.47358 | $34.73580 |
| 25 | $3.40407 | $85.10175 |
| 50 | $3.33593 | $166.79650 |
| 100 | $2.47844 | $247.84400 |
| 300 | $2.46827 | $740.48100 |
| 500 | $2.45814 | $1229.07000 |
| 1000 | $2.44805 | $2448.05000 |
| 3000 | $2.43801 | $7314.03000 |
| 5000 | $2.42800 | $12140.00000 |
