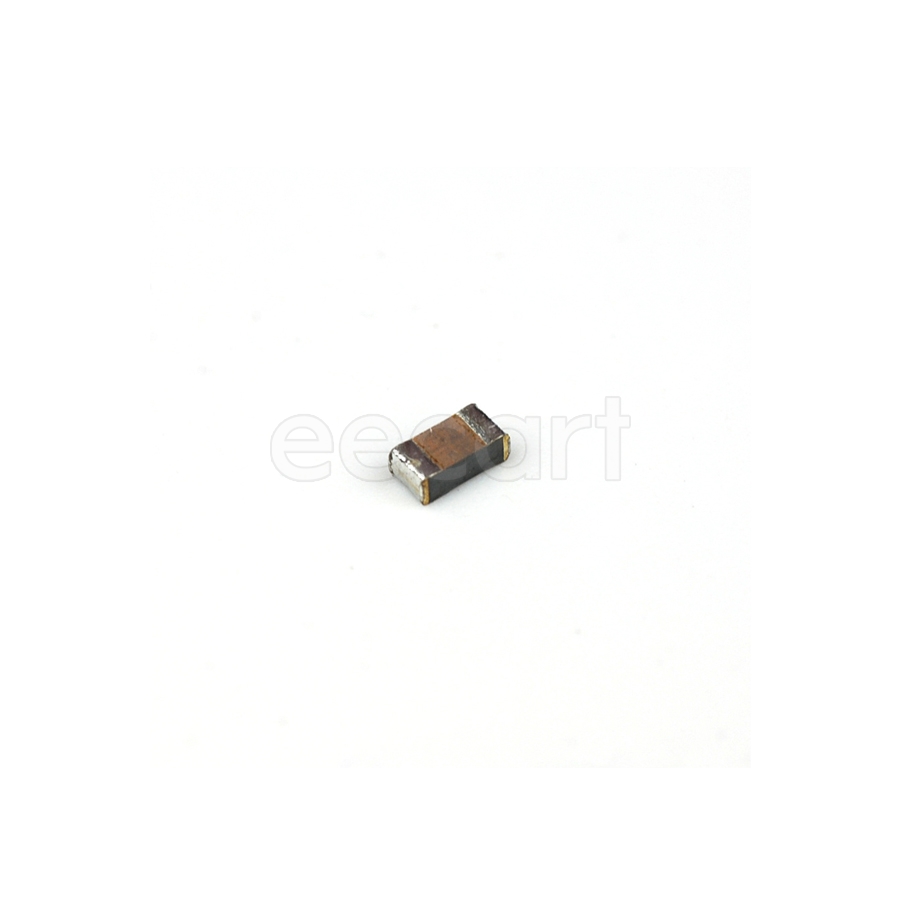

ECP-U1C224MA5

Manufacturer:

Panasonic

Mfr.Part #:

ECP-U1C224MA5

Datasheet:
Description:

Film Capacitors SMD/SMT 220 nF 20 % Polyphenylene Sulfide (PPS) Voltage Rating (DC):16 V Voltage Rating (AC):16 V

ParameterValue
Capacitance220 nF
Voltage Rating (DC)16 V
Tolerance20 %
Height - Seated (Max)0.991 mm
Length3.2 mm
Width1.6002 mm
TerminationSolder
Max Operating Temperature85 °C
Min Operating Temperature-40 °C
DielectricPolyphenylene Sulfide (PPS)
Case Code (Imperial)1206
Case Code (Metric)3216
Voltage Rating (AC)16 V
Number of Pins2
Height800 µm
PackagingReel
Voltage Rating16 V
Depth1.6 mm
Lead FreeLead Free
Radiation HardeningNo
RoHSCompliant
Insulation Resistance1 GΩ
Voltage16 V
REACH SVHCNo SVHC
Weight10.007382 mg
Contact PlatingCopper, Silver, Tin
Schedule B8532250080

Stock: 9999

Distributors
pcbx
Unit Price$0.48817
Ext.Price$0.48817
QtyUnit PriceExt.Price
1$0.48817$0.48817
10$0.23425$2.34250
25$0.22225$5.55625
50$0.21086$10.54300
100$0.20006$20.00600
300$0.17979$53.93700
500$0.16158$80.79000
1000$0.15560$155.60000
3000$0.14363$430.89000
5000$0.13751$687.55000
10000$0.13166$1316.60000
