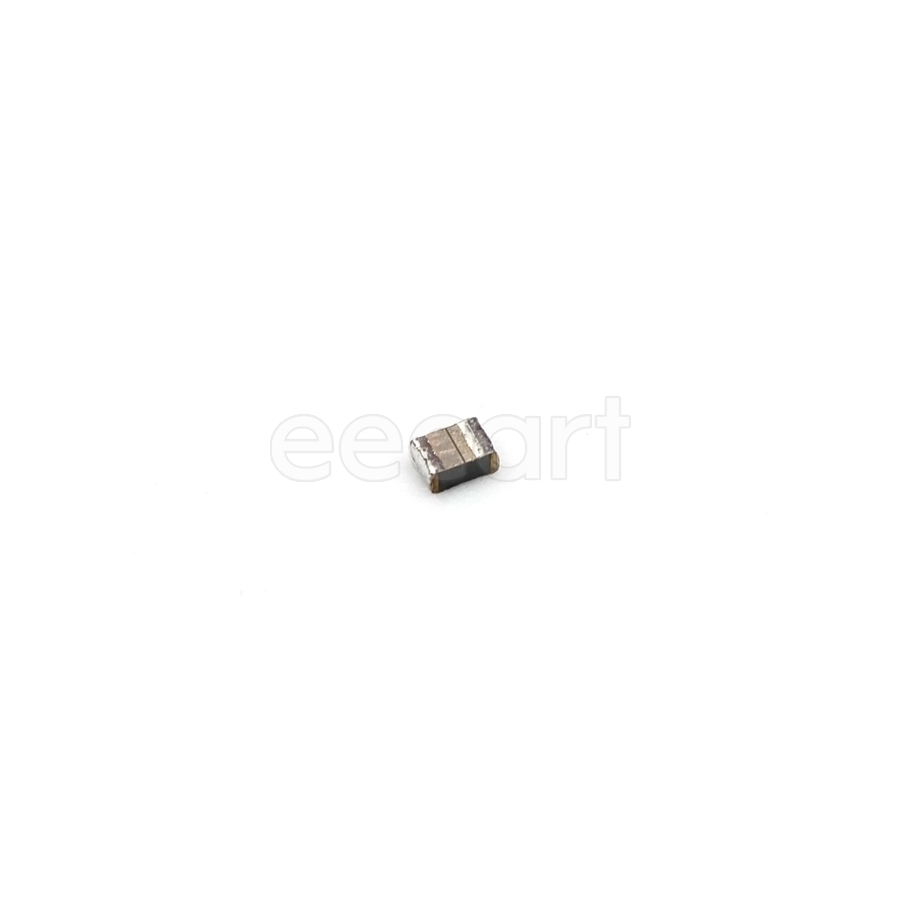

ECPU1C104MA5
Manufacturer:
Panasonic
Mfr.Part #:
ECPU1C104MA5
Datasheet:
Description:
Film Capacitors SMD/SMT 100 nF 20 % Polyphenylene Sulfide (PPS) Voltage Rating (DC):16 V Voltage Rating (AC):16 V
| Parameter | Value |
|---|---|
| Contact Plating | Copper, Silver, Tin |
| Height - Seated (Max) | 1.2 mm |
| Lead Free | Lead Free |
| Insulation Resistance | 1 GΩ |
| Min Operating Temperature | -40 °C |
| Voltage Rating | 16 V |
| Dielectric | Polyphenylene Sulfide (PPS) |
| Tolerance | 20 % |
| Height | 1 mm |
| Schedule B | 8532250080 |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 16 V |
| Capacitance | 100 nF |
| Voltage Rating (DC) | 16 V |
| Length | 2 mm |
| Packaging | Reel |
| Mount | SMD/SMT |
| Voltage | 16 V |
| Case Code (Imperial) | 0805 |
| Depth | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Number of Pins | 2 |
| Width | 1.2446 mm |
| Case Code (Metric) | 2012 |
| Case/Package | 0805 |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
| Dielectric Material | Acrylic, Metallized - Stacked |
Stock: 3634
Distributors
pcbx
pcbxUnit Price$0.33456
Ext.Price$0.33456
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33456 | $0.33456 |
| 10 | $0.29891 | $2.98910 |
| 50 | $0.26707 | $13.35350 |
| 100 | $0.23347 | $23.34700 |
| 500 | $0.20409 | $102.04500 |
| 1000 | $0.17861 | $178.61000 |
| 3000 | $0.15631 | $468.93000 |
| 5000 | $0.14641 | $732.05000 |
