ECQ-E2825KF
Manufacturer:
Panasonic
Mfr.Part #:
ECQ-E2825KF
Datasheet:
Description:

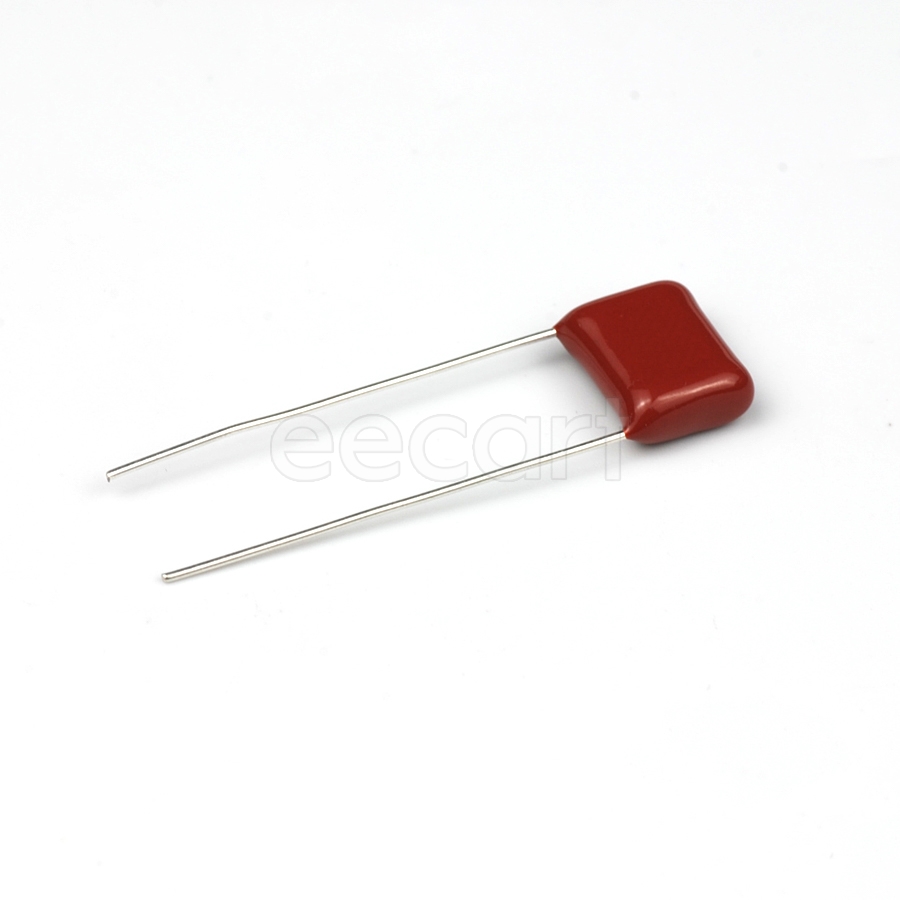

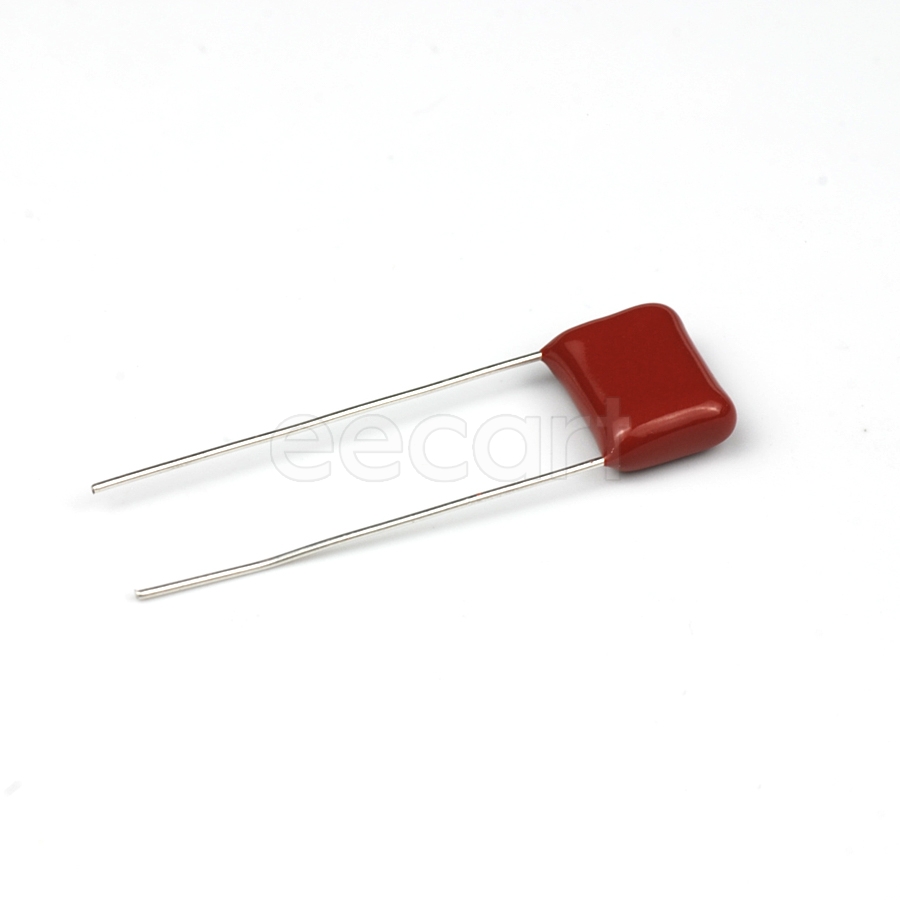

Film Capacitors Through Hole 8.2 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):250 V Voltage Rating (AC):150 V
| Parameter | Value |
|---|---|
| Capacitance | 8.2 µF |
| Voltage Rating (DC) | 250 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 24.51 mm |
| Length | 31 mm |
| Width | 14.3 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 150 V |
| Number of Pins | 2 |
| Height | 23.5 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 14.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 27.5 mm |
| Voltage | 250 V |
| REACH SVHC | Unknown |
| Dielectric Material | Polyester |
| Lead Length | 20 mm |
| Lead/Base Style | Straight |
| Schedule B | 8532250070 |
Stock: 232
Distributors
pcbx
pcbxUnit Price$1.61453
Ext.Price$1.61453
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.61453 | $1.61453 |
| 10 | $1.10861 | $11.08610 |
| 25 | $1.00348 | $25.08700 |
| 50 | $0.90831 | $45.41550 |
| 100 | $0.84637 | $84.63700 |
| 300 | $0.79226 | $237.67800 |
| 500 | $0.74161 | $370.80500 |
| 1000 | $0.70918 | $709.18000 |
| 3000 | $0.66908 | $2007.24000 |
| 5000 | $0.65425 | $3271.25000 |
