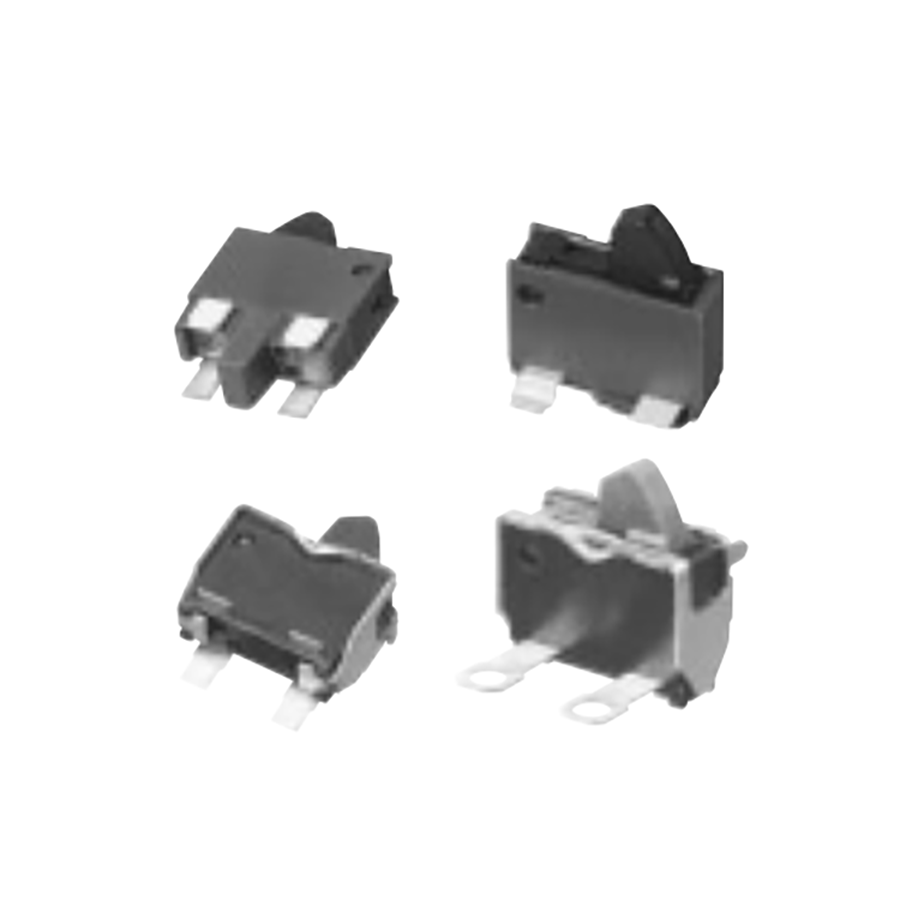

ESE22MH24
Manufacturer:
Panasonic
Mfr.Part #:
ESE22MH24
Datasheet:
Description:
Snap Action / Limit Switches SMD/SMT SPST-NO Off-Mom Current Rating:10 mA Operating Force:300 mN Angled Toggle (Detector)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Width | 5.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Height | 2.1 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Voltage Rating | 5 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Tin |
| Number of Terminals | 2 |
| Current Rating | 10 mA |
| Max Voltage Rating (DC) | 5 V |
| Orientation | Right Angle |
| Actuator Length | 2.15 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Switch Function | Off-Mom |
| Electrical Life | 50 kcycles |
| Operating Force | 300 mN |
| Mechanical Life | 50 kcycles |
| Operating Position | 2.3114 mm |
| Contact Current Rating | 10 mA |
| Actuator Type | Angled Toggle (Detector) |
| Termination Style | Solder Terminal |
| Schedule B | 8536509065 |
Stock: 2478
Distributors
pcbx
pcbxUnit Price$0.81128
Ext.Price$0.81128
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81128 | $0.81128 |
| 10 | $0.40564 | $4.05640 |
| 25 | $0.37453 | $9.36325 |
| 50 | $0.35334 | $17.66700 |
| 100 | $0.33335 | $33.33500 |
| 300 | $0.30926 | $92.77800 |
| 500 | $0.28690 | $143.45000 |
| 1000 | $0.27597 | $275.97000 |
