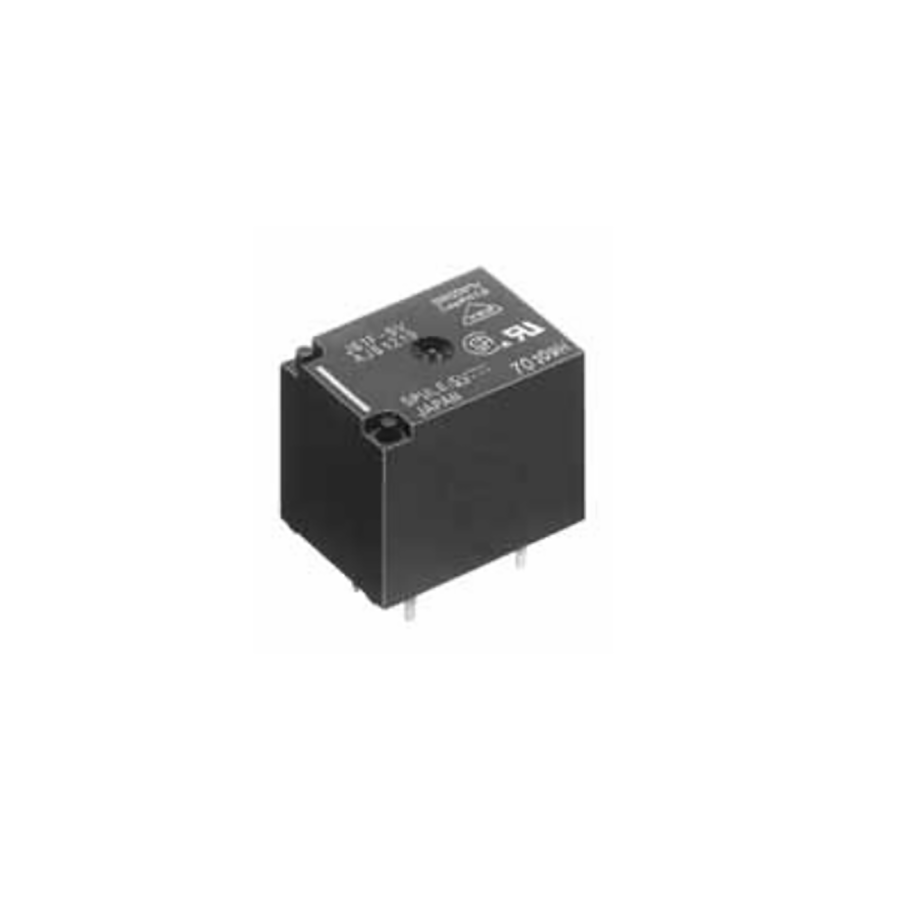

JS1-48V-F
Manufacturer:
Panasonic
Mfr.Part #:
JS1-48V-F
Datasheet:
Description:
Signal Relays Through Hole 7.5 mA Non-Latching Coil Voltage (DC):48 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 22 mm |
| Width | 22 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Power Rating | 360 mW |
| Height | 16.04 mm |
| Packaging | Bulk |
| Depth | 16 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Silver, Tin |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Max Voltage Rating (DC) | 100 V |
| Approvals | CSA, TUV, UL, VDE |
| Number of Contacts | 1 |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 48 V |
| Coil Current | 7.5 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 6.4 kΩ |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 10 A |
| switching current | 10 A |
| power consumption | 360 mW |
| Termination Style | Solder Pin |
| Switching Voltage | 250 VAC, 100 VDC |
| Coil Power | 360 mW |
| Must Operate Voltage | 33.6 V |
| Must Release Voltage | 4.8 V |
| Contact Form | 1 Form C (SPDT-NO, NC) |
Stock: 4
Distributors
pcbx
pcbxUnit Price$1.08102
Ext.Price$1.08102
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08102 | $1.08102 |
| 10 | $1.05746 | $10.57460 |
| 25 | $1.04176 | $26.04400 |
