Q6006N5RP
Manufacturer:
Littelfuse
Mfr.Part #:
Q6006N5RP
Datasheet:
Description:

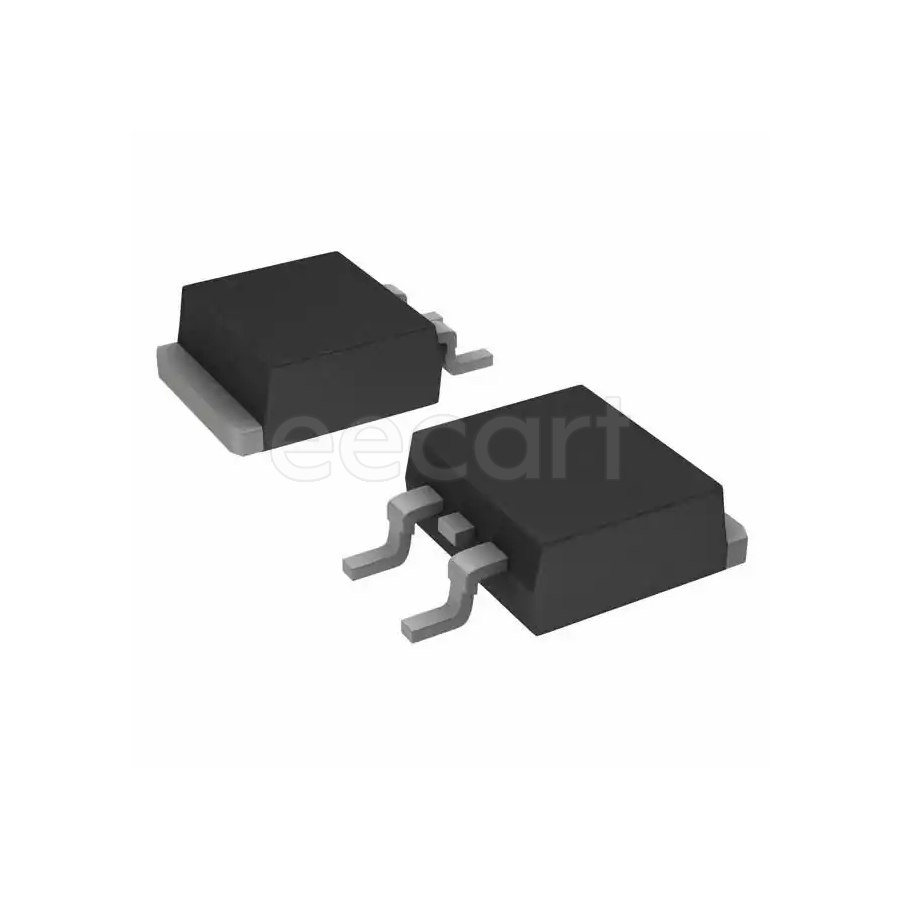

TRIACs TO-263 SMD/SMT On-State Current:6 A On-State Voltage:1.6 V Peak Non-Repetitive Surge Current:65 A, 80 A Rated Repetitive Off-State Voltage VDRM:600 V Hold Current:50 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Current Rating | 6 A |
| Hold Current | 50 mA |
| Element Configuration | Single |
| RMS Current (Irms) | 6 A |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Peak Non-Repetitive Surge Current | 65 A, 80 A |
| Rated Repetitive Off-State Voltage VDRM | 600 V |
| On-State Voltage | 1.6 V |
| Off-State Leakage Current @ VDRM IDRM | 50 µA |
| On-State Current | 6 A |
Stock: 198
Distributors
pcbx
pcbxUnit Price$1.89623
Ext.Price$1.89623
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89623 | $1.89623 |
| 10 | $1.23880 | $12.38800 |
| 25 | $1.09837 | $27.45925 |
| 50 | $0.97386 | $48.69300 |
| 100 | $0.86348 | $86.34800 |
| 300 | $0.81510 | $244.53000 |
| 500 | $0.76944 | $384.72000 |
