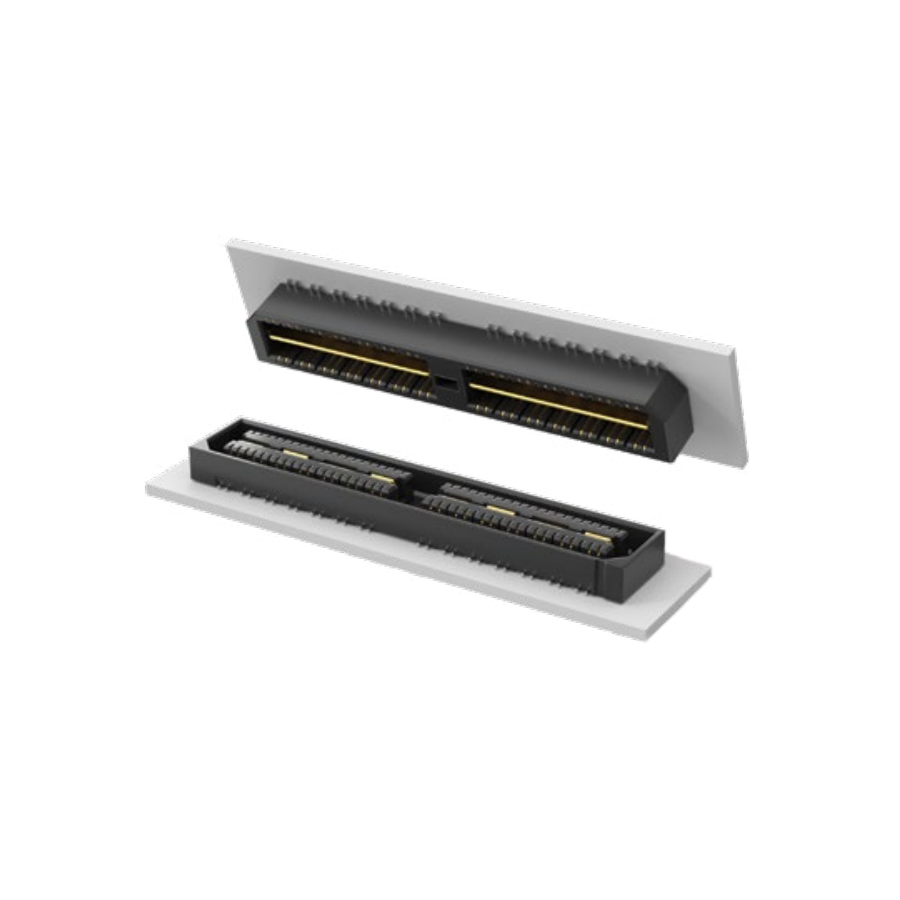

QSE-040-01-L-D-A
Manufacturer:
Samtec
Mfr.Part #:
QSE-040-01-L-D-A
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:80 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 41.27 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.327 mm |
| Packaging | Tray |
| Voltage Rating | 225 V |
| Depth | 7.24 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 800 µm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 80 |
| Connector Type | Receptacle |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Row Spacing | 3.7 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 225 V |
| Housing Color | Black |
| Mated Stacking Heights | 25 mm |
Stock: 1261
Distributors
pcbx
pcbxUnit Price$5.70153
Ext.Price$5.70153
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.70153 | $5.70153 |
| 10 | $5.33227 | $53.32270 |
| 25 | $4.98693 | $124.67325 |
| 50 | $4.66395 | $233.19750 |
| 100 | $4.36185 | $436.18500 |
| 300 | $3.78662 | $1135.98600 |
| 500 | $3.28725 | $1643.62500 |
| 1000 | $2.85376 | $2853.76000 |
