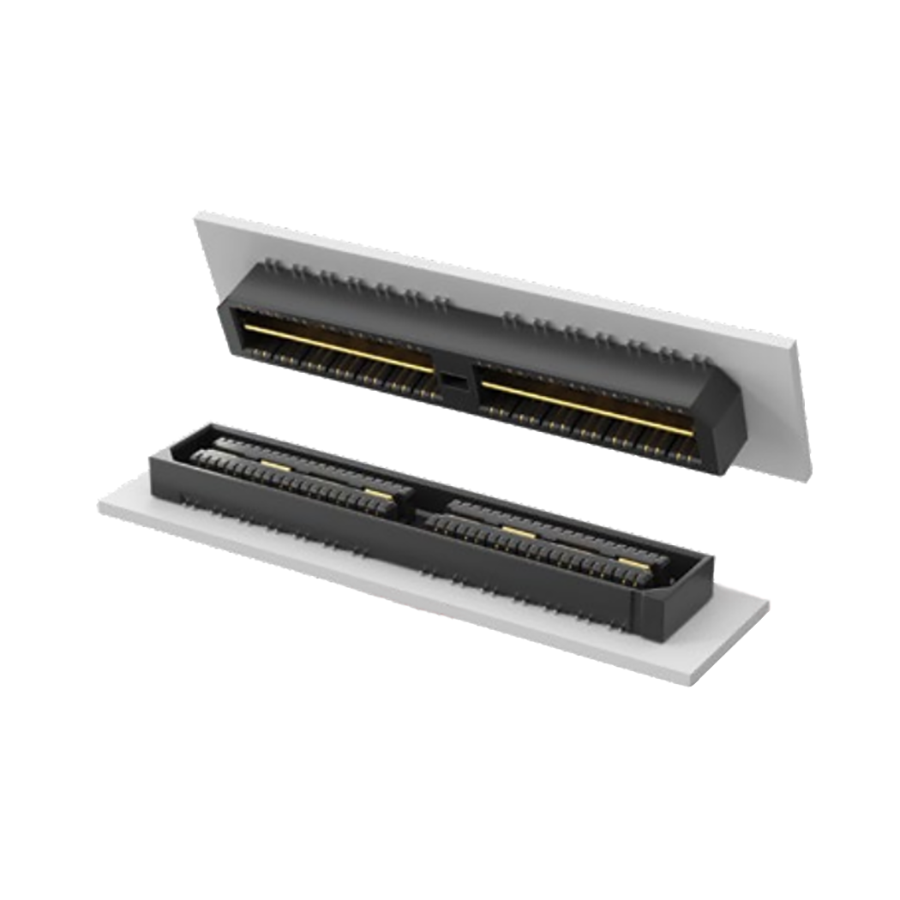

QTE-040-04-L-D-A
Manufacturer:
Samtec
Mfr.Part #:
QTE-040-04-L-D-A
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:80 Number of Rows:2 Row Spacing:3.94 mm Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 40 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 225 V |
| Packaging | Tray |
| Voltage Rating | 225 V |
| Depth | 6.73 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 800 µm |
| Current Rating | 1.3 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Row Spacing | 3.94 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 225 V |
| Housing Color | Black |
| Stack Height | 16 mm |
| Mated Stacking Heights | 16 mm |
| Mounting Angle | Vertical |
Stock: 109
Distributors
pcbx
pcbxUnit Price$9.96250
Ext.Price$9.96250
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.96250 | $9.96250 |
| 10 | $8.62442 | $86.24420 |
| 25 | $7.46606 | $186.65150 |
| 50 | $6.46328 | $323.16400 |
| 100 | $5.59519 | $559.51900 |
| 300 | $4.84369 | $1453.10700 |
| 500 | $4.19313 | $2096.56500 |
| 1000 | $3.63003 | $3630.03000 |
