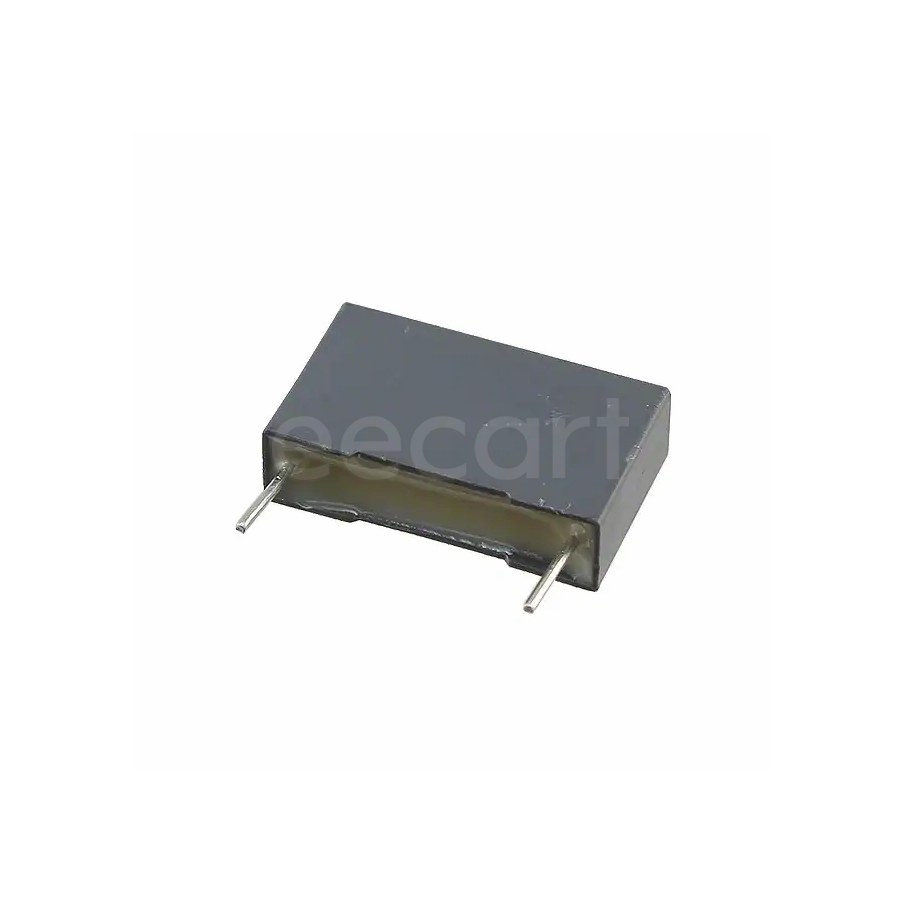

R463I310000M1M
Manufacturer:
KEMET
Mfr.Part #:
R463I310000M1M
Datasheet:
Description:
Film Capacitors Through Hole 100 nF 20 % Polypropylene (PP) Voltage Rating (DC):630 V Voltage Rating (AC):310 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 630 V |
| Tolerance | 20 % |
| Height - Seated (Max) | 11.1 mm |
| Length | 18 mm |
| Width | 5.0038 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 310 V |
| Height | 18 mm |
| Packaging | Bulk |
| Depth | 5 mm |
| Lead Diameter | 600 µm |
| Lead Pitch | 15 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | PP |
| Number of Pins | 2 |
| RoHS | Compliant |
Stock: 38
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.18296 | $1.82960 |
| 25 | $0.16978 | $4.24450 |
| 50 | $0.15755 | $7.87750 |
| 100 | $0.14620 | $14.62000 |
| 300 | $0.14142 | $42.42600 |
| 500 | $0.13679 | $68.39500 |
| 1000 | $0.13337 | $133.37000 |
| 3000 | $0.12910 | $387.30000 |
