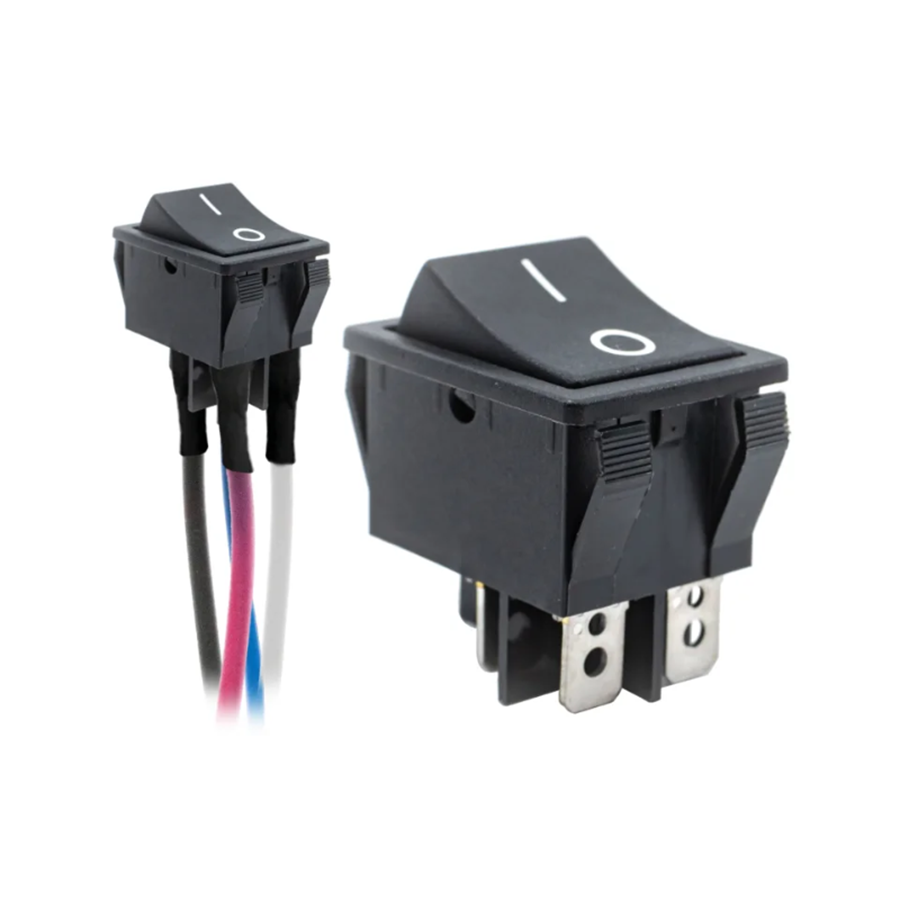

R5BBLKGRNFF2
Manufacturer:
E-Switch
Mfr.Part #:
R5BBLKGRNFF2
Datasheet:
Description:
Rocker Switches Panel, Snap in DPST ON - OFF Illuminated, Neon Concave (Curved) - Illuminated Current Rating:20 A
| Parameter | Value |
|---|---|
| Termination | Quick Connect |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 125 V |
| Height | 17.1 mm |
| Circuit Type | DPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 20 A |
| Max Voltage Rating (DC) | 250 V |
| Output Current | 1.4 A |
| Orientation | Straight |
| Color | Green |
| Illumination Color | Green |
| Throw Configuration | DPST |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Switch Function | ON - OFF |
| Illumination Type | Illuminated, Neon |
| Electrical Life | 10 kcycles |
| Actuator Material | Polycarbonate |
| Mechanical Life | 30 kcycles |
| Contact Current Rating | 20 A |
| Housing Color | Black |
| Actuator Type | Concave (Curved) - Illuminated |
| Termination Style | Quick Connect - 6.3 mm |
| Illumination Voltage | 250 V |
| Panel Cutout Dimensions | Rectangular - 30.00 mm x 22.20 mm |
