R60DR5220AA40K
Manufacturer:
KEMET
Mfr.Part #:
R60DR5220AA40K
Datasheet:
Description:

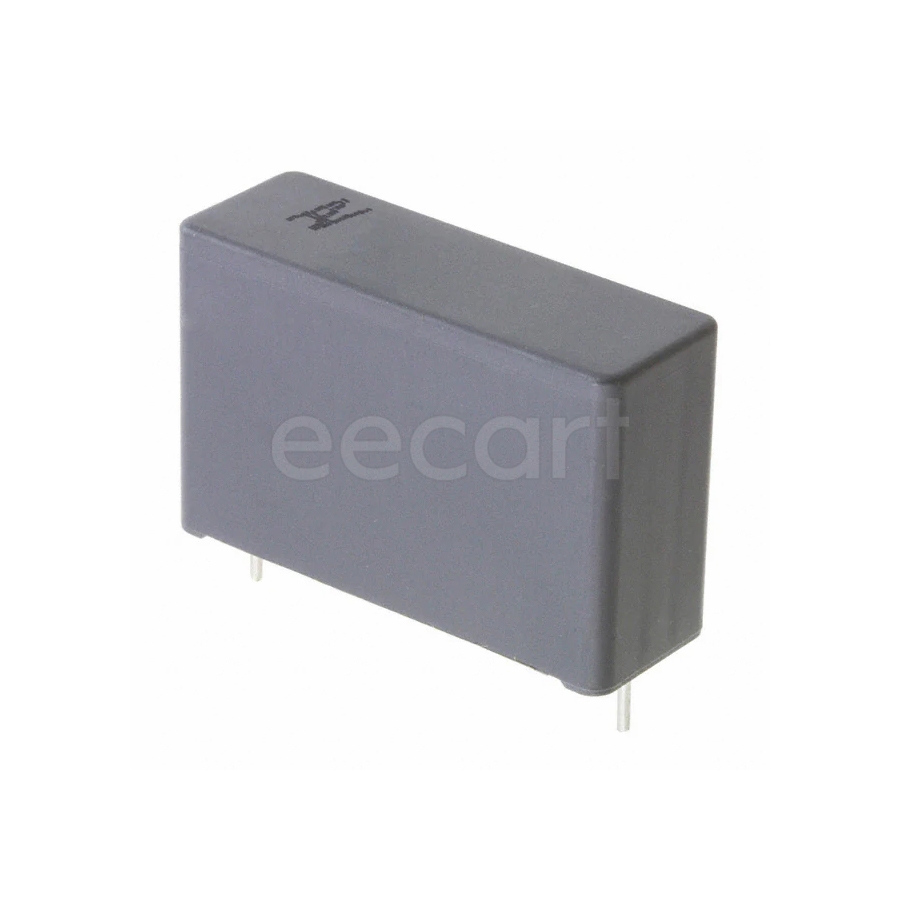

Film Capacitors Through Hole 22 µF 10 % Polyester Voltage Rating (DC):63 V Voltage Rating (AC):40 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 10 % |
| Length | 32 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 20 mm |
| Depth | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 27.5 mm |
| Schedule B | 8532250010 |
| Dielectric | Polyester |
| Packaging | Bulk |
| Voltage Rating (AC) | 40 V |
| Height - Seated (Max) | 20.1 mm |
| Number of Pins | 2 |
Stock: 1596
Distributors
pcbx
pcbxUnit Price$3.81726
Ext.Price$3.81726
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.81726 | $3.81726 |
| 10 | $2.39723 | $23.97230 |
| 25 | $2.35459 | $58.86475 |
| 50 | $2.31271 | $115.63550 |
| 100 | $2.27155 | $227.15500 |
| 300 | $2.20535 | $661.60500 |
| 500 | $2.14107 | $1070.53500 |
| 1000 | $2.07867 | $2078.67000 |
| 3000 | $2.01809 | $6054.27000 |
| 5000 | $1.95927 | $9796.35000 |
| 10000 | $1.90222 | $19022.20000 |
