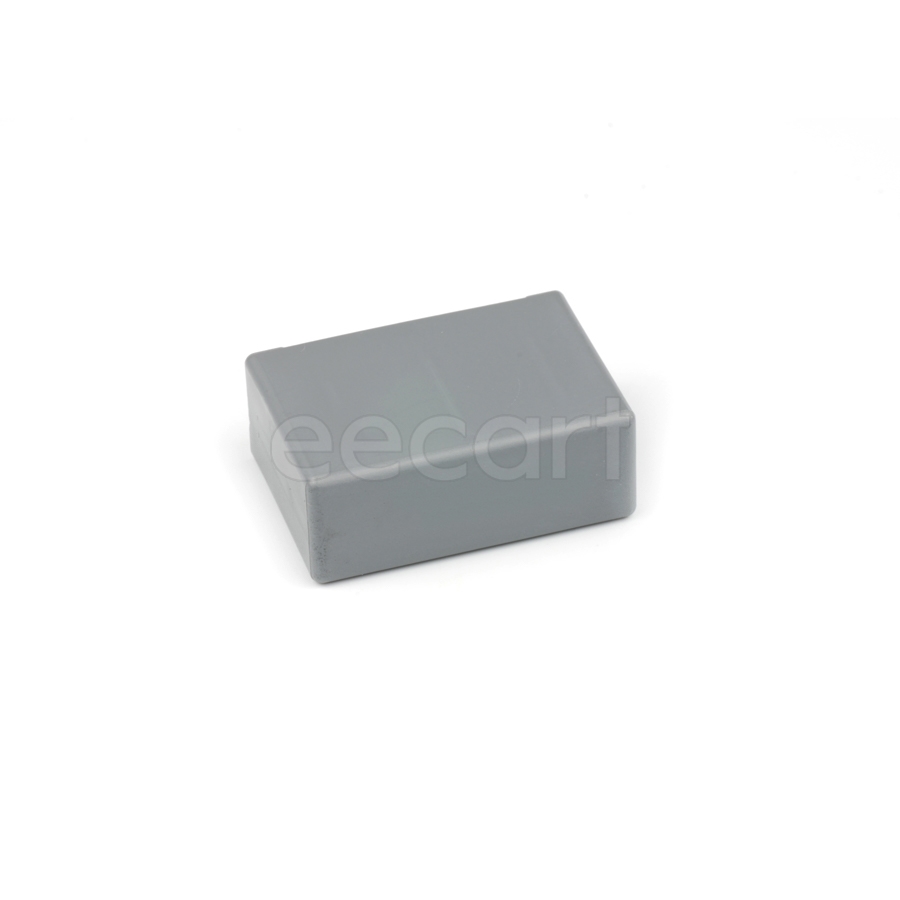

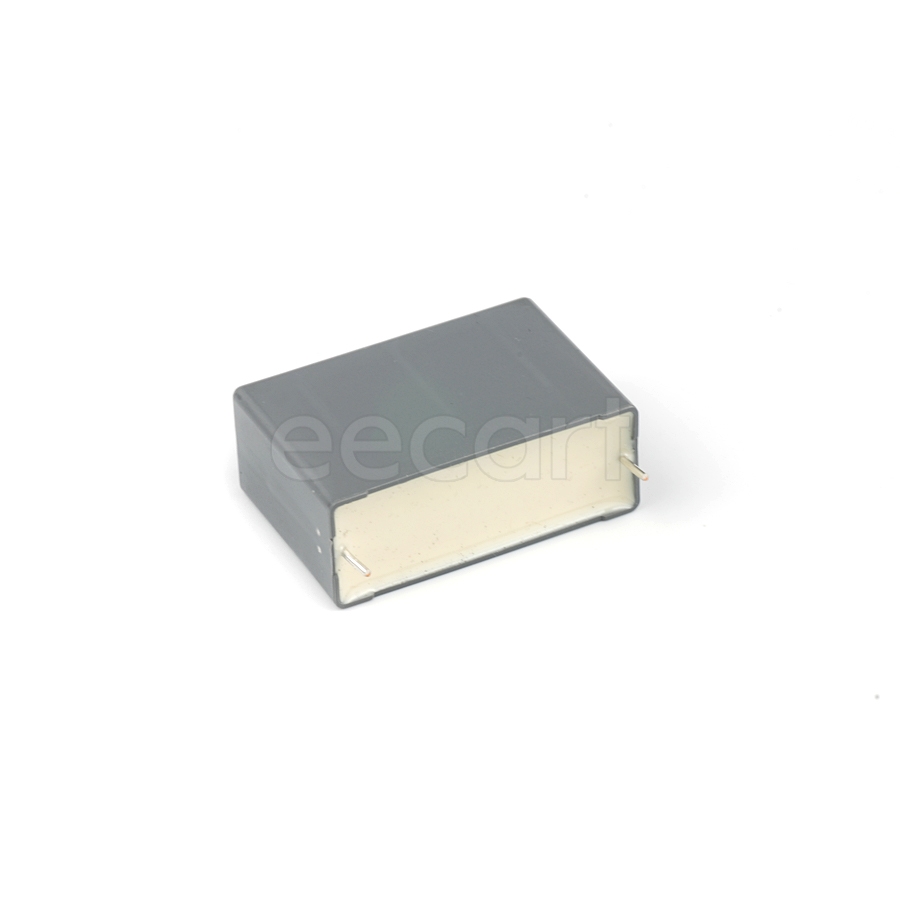

R60IW52205040K
Manufacturer:
KEMET
Mfr.Part #:
R60IW52205040K
Datasheet:
Description:
Film Capacitors Through Hole 22 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):250 V Voltage Rating (AC):160 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 250 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 29.49 mm |
| Length | 41.5036 mm |
| Width | 16.002 mm |
| Termination | PC Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 160 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 37.4904 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | PET |
| Schedule B | 8532250010 |
| Number of Pins | 2 |
Stock: 154
Distributors
pcbx
pcbxUnit Price$6.48379
Ext.Price$6.48379
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.48379 | $6.48379 |
| 10 | $4.31825 | $43.18250 |
| 25 | $4.22170 | $105.54250 |
| 50 | $4.12731 | $206.36550 |
| 100 | $4.03503 | $403.50300 |
| 300 | $3.94481 | $1183.44300 |
| 500 | $3.85661 | $1928.30500 |
| 1000 | $3.77038 | $3770.38000 |
| 3000 | $3.68608 | $11058.24000 |
| 5000 | $3.60366 | $18018.30000 |
| 10000 | $3.52317 | $35231.70000 |
