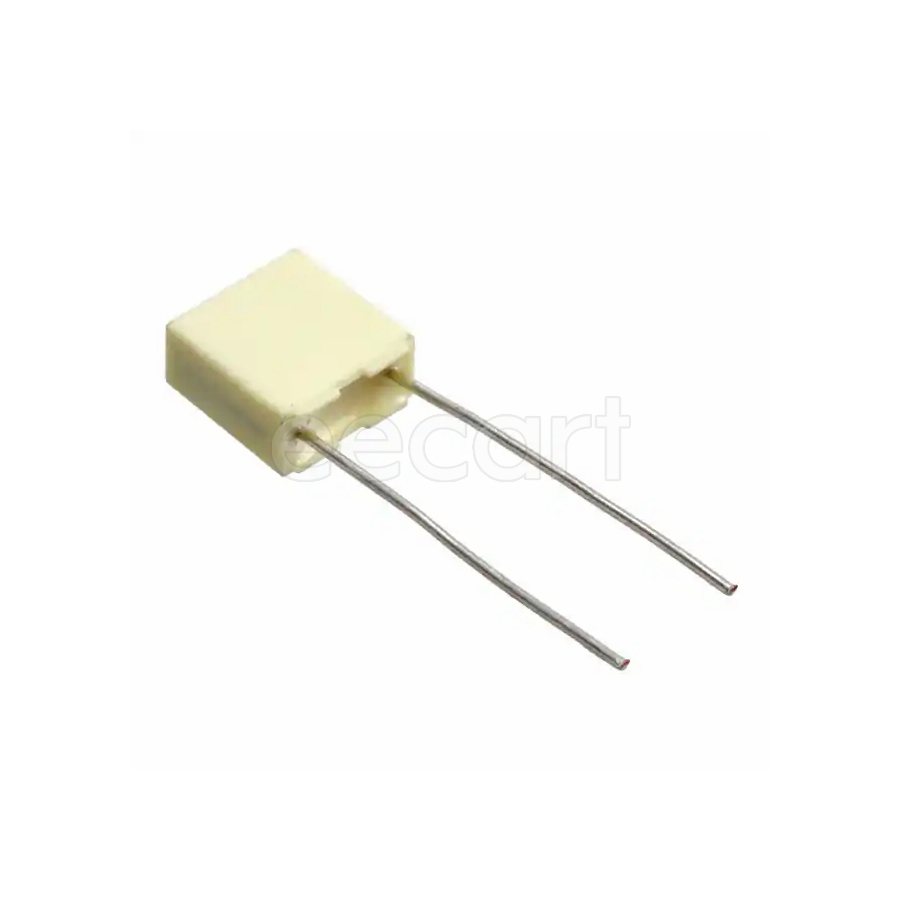

R82EC1100Z350J
Manufacturer:
KEMET
Mfr.Part #:
R82EC1100Z350J
Datasheet:
Description:
Film Capacitors Through Hole 1 nF 5 % Polyethylene Terephthalate(PET) Voltage Rating (DC):100 V Voltage Rating (AC):63 V
| Parameter | Value |
|---|---|
| Capacitance | 1 nF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 5 % |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 6.6 mm |
| Length | 7.2 mm |
| Width | 2.4892 mm |
| Termination | PC Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Height | 6.5 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 2.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | PET |
| Lead Length | 17 mm |
| Schedule B | 8532250080 |
Stock: 20420
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.06198 | $0.61980 |
| 50 | $0.05909 | $2.95450 |
| 100 | $0.05634 | $5.63400 |
| 500 | $0.04942 | $24.71000 |
| 1000 | $0.04881 | $48.81000 |
| 3000 | $0.04753 | $142.59000 |
