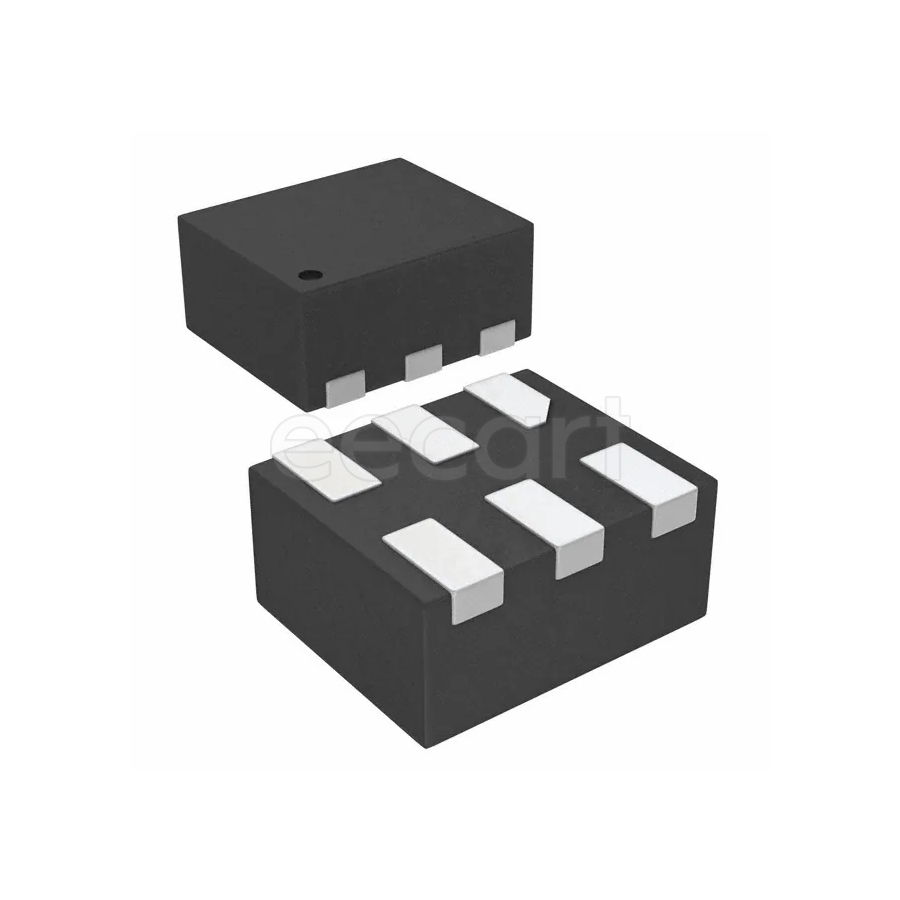

RCLAMP0503N.TCT
Manufacturer:
Semtech
Mfr.Part #:
RCLAMP0503N.TCT
Datasheet:
Description:
TVS Diodes SLP1510N6-6 SMD/SMT Working Voltage:6.5 V Breakdown Voltage:9.5 V Clamping Voltage:30 V Peak Pulse Power:100 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Leakage Current | 1 µA |
| Height | 650 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Number of Elements | 1 |
| Working Voltage | 6.5 V |
| Peak Pulse Current | 3 A |
| Number of Channels | 4 |
| Breakdown Voltage | 9.5 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 7 V |
| Reverse Standoff Voltage | 6.5 V |
| Clamping Voltage | 30 V |
| Peak Pulse Power | 100 W |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 3 |
| Reverse Breakdown Voltage | 7 V |
| Test Current | 1 mA |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 0.5 pF |
Stock: 3901
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.51980 | $5.19800 |
| 25 | $0.45396 | $11.34900 |
| 50 | $0.39646 | $19.82300 |
| 100 | $0.34624 | $34.62400 |
| 300 | $0.30439 | $91.31700 |
| 500 | $0.26760 | $133.80000 |
| 1000 | $0.24451 | $244.51000 |
| 3000 | $0.21031 | $630.93000 |
| 5000 | $0.19798 | $989.90000 |
| 10000 | $0.18637 | $1863.70000 |
