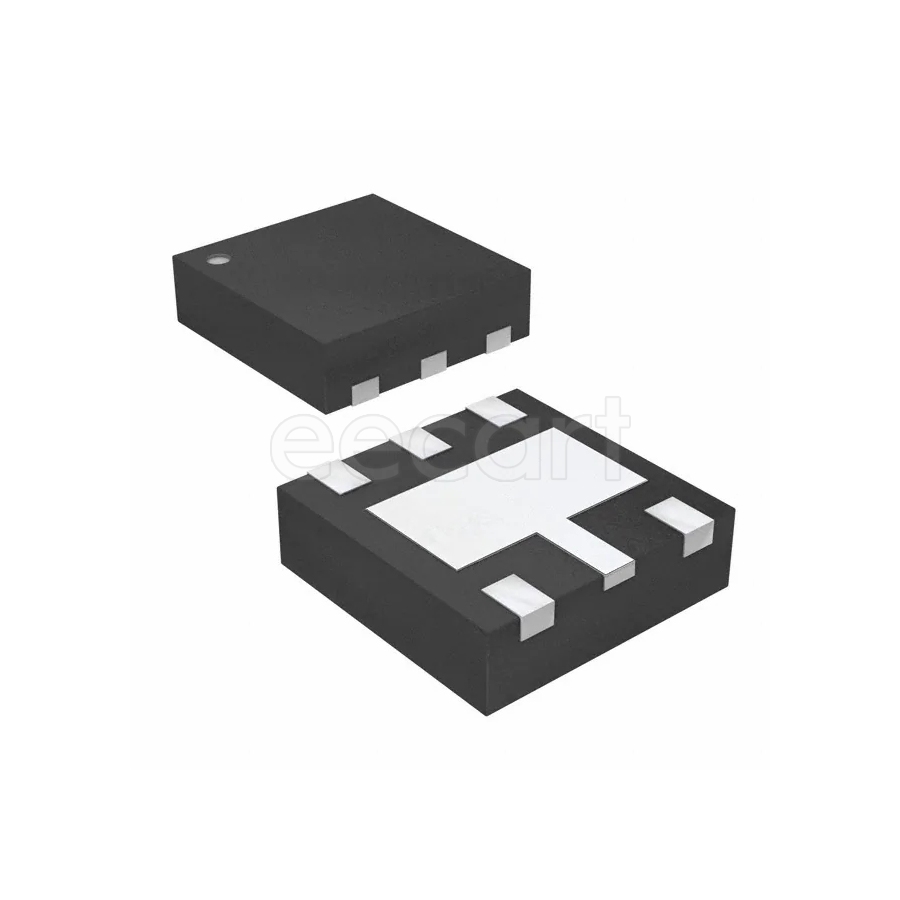

RCLAMP0504N.TCT
Manufacturer:
Semtech
Mfr.Part #:
RCLAMP0504N.TCT
Datasheet:
Description:
ESD and Circuit Protection ICs SLP2020P6 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V 300 W 5 pF
| Parameter | Value |
|---|---|
| Capacitance | 3 pF |
| Voltage Rating (DC) | 5 V |
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Leakage Current | 5 µA |
| Power Rating | 300 W |
| Height | 600 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Operating Supply Voltage | 5 V |
| Peak Pulse Current | 5 A |
| Number of Channels | 4 |
| Max Reverse Leakage Current | 5 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 17.5 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 4 |
| Reverse Breakdown Voltage | 6 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 6 V |
| Working Voltage | 5 V |
| Peak Pulse Power | 300 W |
| Breakdown Voltage | 6 V |
| Diode Capacitance | 5 pF |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
Stock: 373
Distributors
pcbx
pcbxUnit Price$1.45008
Ext.Price$1.45008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45008 | $1.45008 |
| 10 | $1.21582 | $12.15820 |
| 25 | $1.10847 | $27.71175 |
| 50 | $1.01059 | $50.52950 |
| 100 | $0.92135 | $92.13500 |
| 300 | $0.88666 | $265.99800 |
| 500 | $0.85329 | $426.64500 |
