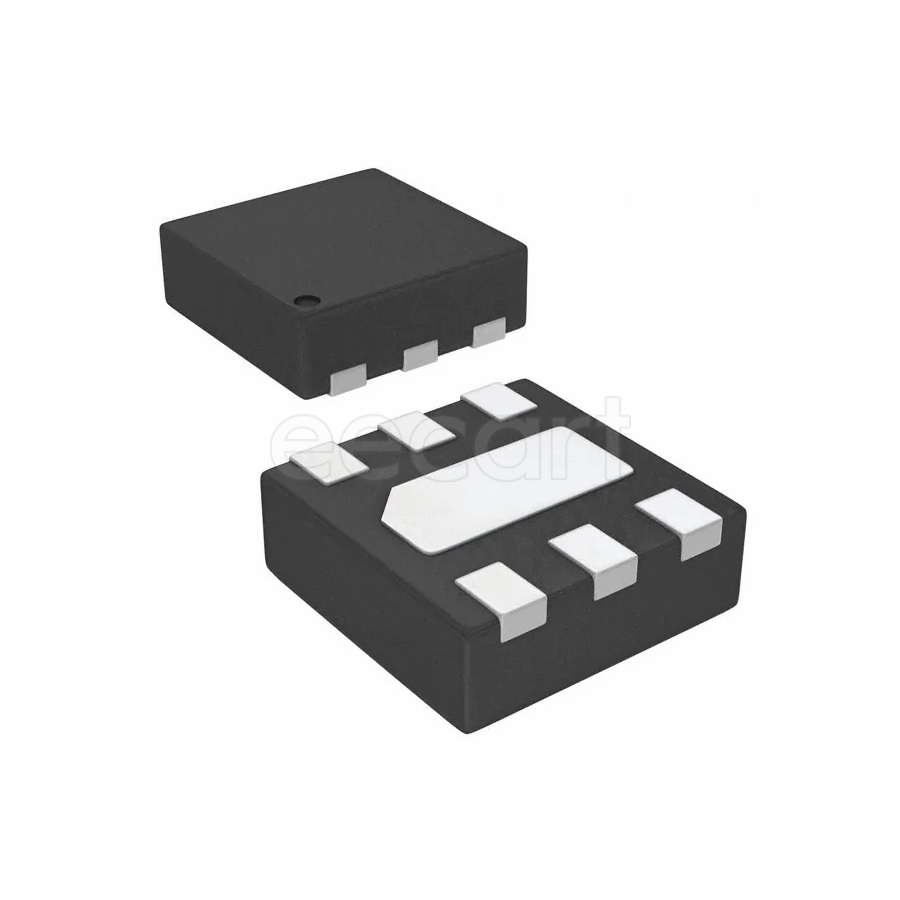

RCLAMP0504PATCT
Manufacturer:
Semtech
Mfr.Part #:
RCLAMP0504PATCT
Datasheet:
Description:
ESD and Circuit Protection ICs SLP1616P-6 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V 150 W 3 pF
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Leakage Current | 3 µA |
| Packaging | Reel |
| Depth | 1.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| Working Voltage | 5 V |
| Max Power Dissipation | 150 W |
| Peak Pulse Current | 6 A |
| Number of Channels | 4 |
| Max Reverse Leakage Current | 3 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 25 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 4 |
| Test Current | 1 mA |
| Schedule B | 8536300000 |
| Peak Pulse Power | 150 W |
| Breakdown Voltage | 6 V |
| Diode Capacitance | 3 pF |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
Stock: 18
Distributors
pcbx
pcbxUnit Price$1.22650
Ext.Price$1.22650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.22650 | $1.22650 |
| 10 | $1.02528 | $10.25280 |
| 25 | $0.94331 | $23.58275 |
| 50 | $0.86789 | $43.39450 |
| 100 | $0.79850 | $79.85000 |
| 300 | $0.76981 | $230.94300 |
| 500 | $0.74215 | $371.07500 |
| 1000 | $0.71693 | $716.93000 |
