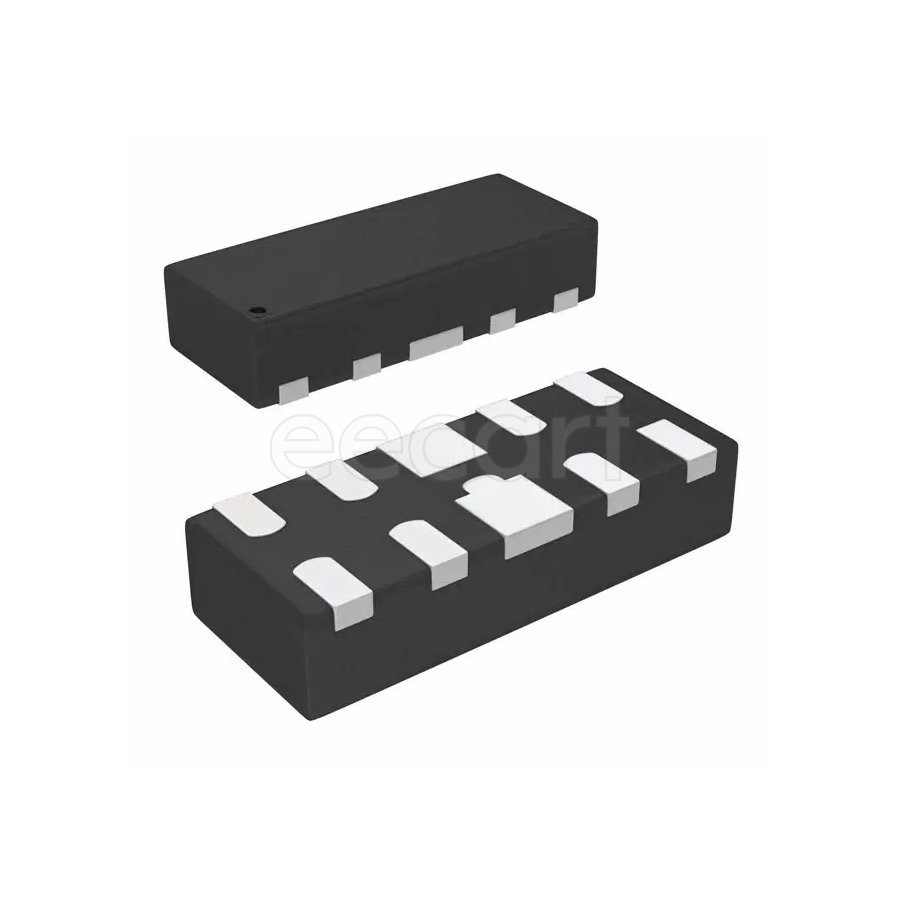

RCLAMP0524P.TCT
Manufacturer:
Semtech
Mfr.Part #:
RCLAMP0524P.TCT
Datasheet:
Description:
TVS Diodes UFDFN-10 SMD/SMT Working Voltage:5 V Breakdown Voltage:6.5 V Clamping Voltage:15 V Peak Pulse Power:150 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 300 fF |
| Length | 2.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 10 |
| Leakage Current | 1 µA |
| Packaging | Reel |
| Depth | 1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Working Voltage | 5 V |
| Operating Supply Voltage | 5 V |
| Max Power Dissipation | 150 W |
| Peak Pulse Current | 1 A |
| Number of Channels | 4 |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 15 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 4 |
| Reverse Breakdown Voltage | 6 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 6 V |
| Schedule B | 8536300000 |
| Breakdown Voltage | 6.5 V |
| Peak Pulse Power | 150 W |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 0.8 pF |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
