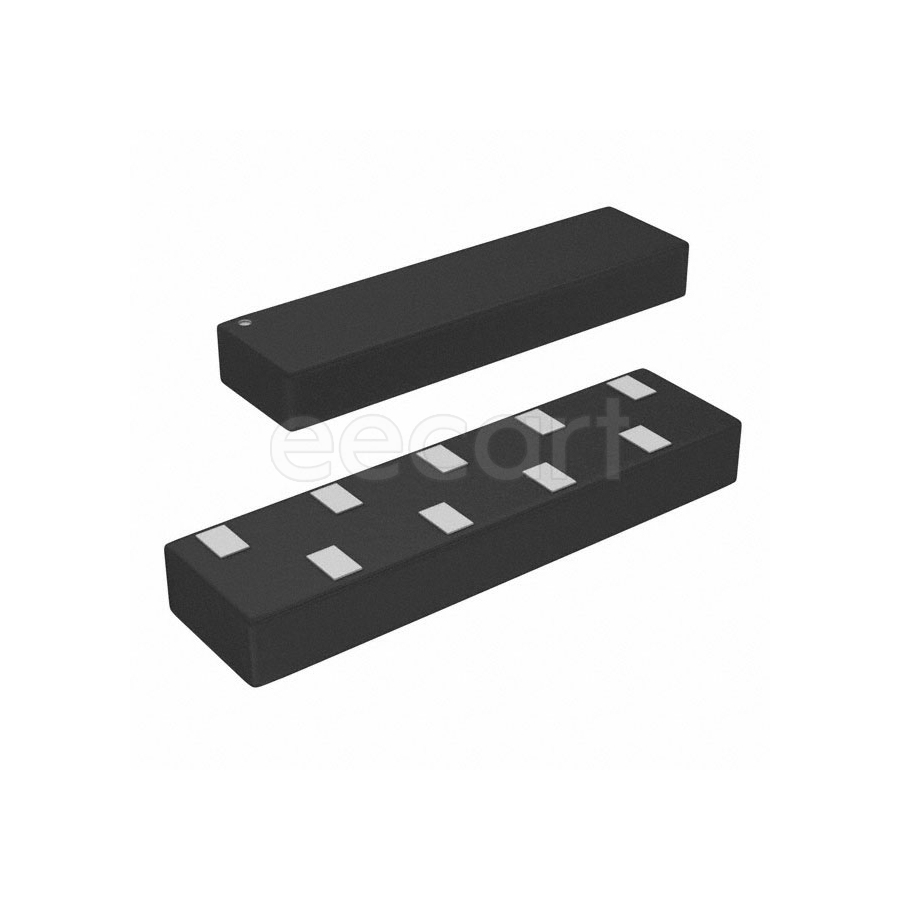

RCLAMP7528T.TNT
Manufacturer:
Semtech
Mfr.Part #:
RCLAMP7528T.TNT
Datasheet:
Description:
ESD and Circuit Protection ICs XFDFN-9 SMD/SMT Working Voltage:5 V Breakdown Voltage:6.5 V 75 W 0.5 pF
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Peak Pulse Current | 5 A |
| Min Breakdown Voltage | 6.5 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 15 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 8 |
| Number of Channels | 8 |
| Working Voltage | 5 V |
| Peak Pulse Power | 75 W |
| Breakdown Voltage | 6.5 V |
| Diode Capacitance | 0.5 pF |
| Polarity | Unidirectional |
| Voltage ESD Contact | 20 kV |
| Voltage ESD Air Gap | 25 kV |
Stock: 263
Distributors
pcbx
pcbxUnit Price$0.85151
Ext.Price$0.85151
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85151 | $0.85151 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.61662 | $15.41550 |
| 50 | $0.55247 | $27.62350 |
| 100 | $0.49500 | $49.50000 |
| 300 | $0.44217 | $132.65100 |
| 500 | $0.39497 | $197.48500 |
| 1000 | $0.36420 | $364.20000 |
| 3000 | $0.34216 | $1026.48000 |
| 5000 | $0.32146 | $1607.30000 |
| 10000 | $0.30521 | $3052.10000 |
