RDER73A471K2K1H03B
Manufacturer:
Murata
Mfr.Part #:
RDER73A471K2K1H03B
Datasheet:
Description:

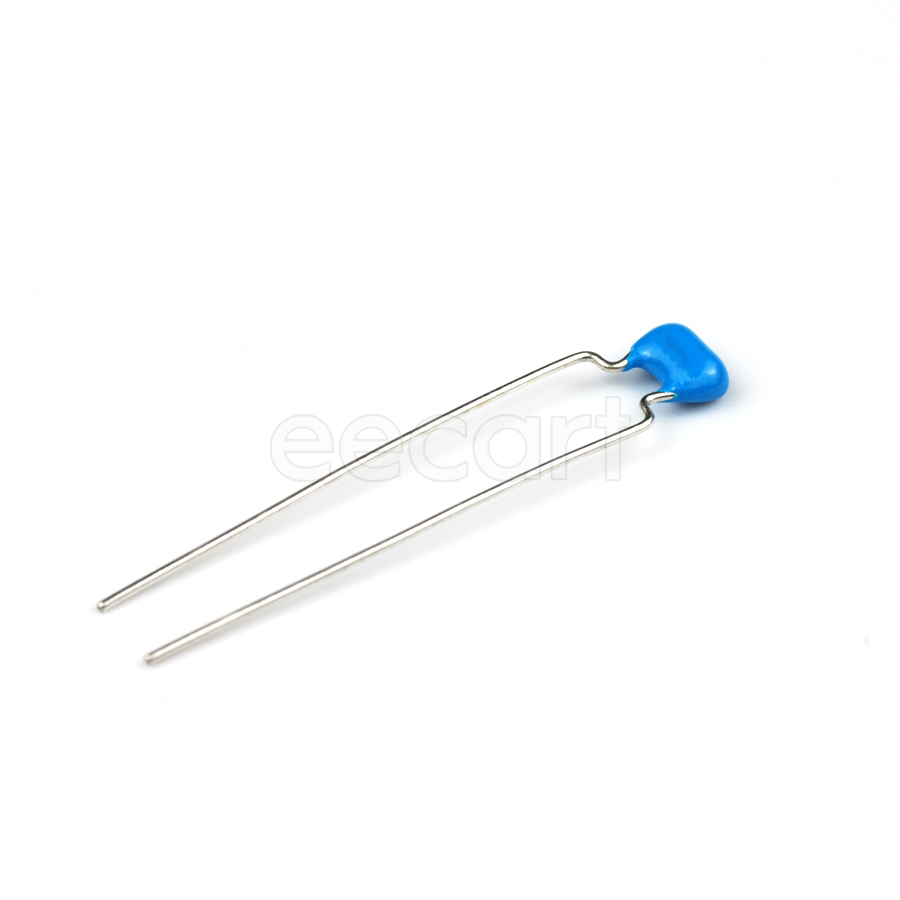

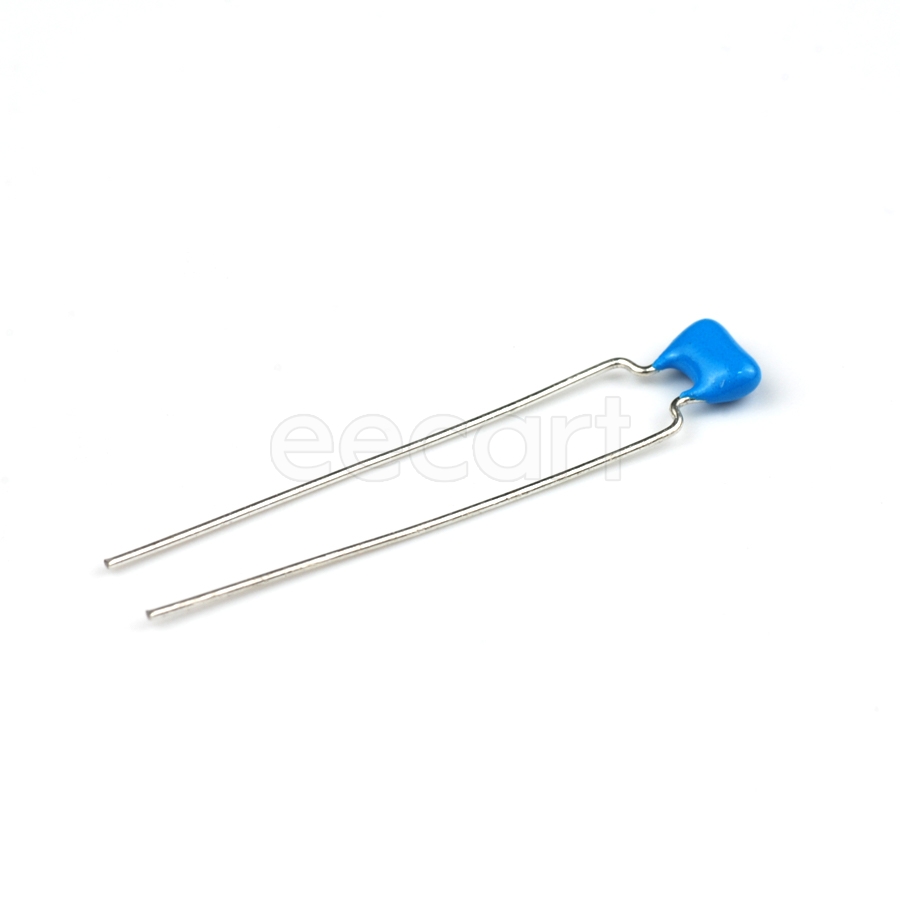

Ceramic Capacitors 5.50mmL×3.15mmW×4.00mmH Through Hole 470 pF 10 % 1000 V (1 kV)
| Parameter | Value |
|---|---|
| Capacitance | 470 pF |
| Voltage Rating (DC) | 1 kV |
| Tolerance | 10 % |
| Height - Seated (Max) | 3.99 mm |
| Length | 5.5118 mm |
| Width | 3.1496 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | X7R |
| Composition(Kit Type) | Ceramic |
| Height | 4 mm |
| Material | Ceramic |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5.0038 mm |
| Lead/Base Style | Formed Leads |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Schedule B | 8532240060 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 week ago) |
Stock: 619
Distributors
pcbx
pcbxUnit Price$0.43174
Ext.Price$0.43174
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43174 | $0.43174 |
| 10 | $0.20433 | $2.04330 |
| 25 | $0.19786 | $4.94650 |
| 50 | $0.19159 | $9.57950 |
| 100 | $0.18552 | $18.55200 |
| 300 | $0.16565 | $49.69500 |
| 500 | $0.14790 | $73.95000 |
| 1000 | $0.14106 | $141.06000 |
| 3000 | $0.13224 | $396.72000 |
| 5000 | $0.12397 | $619.85000 |
