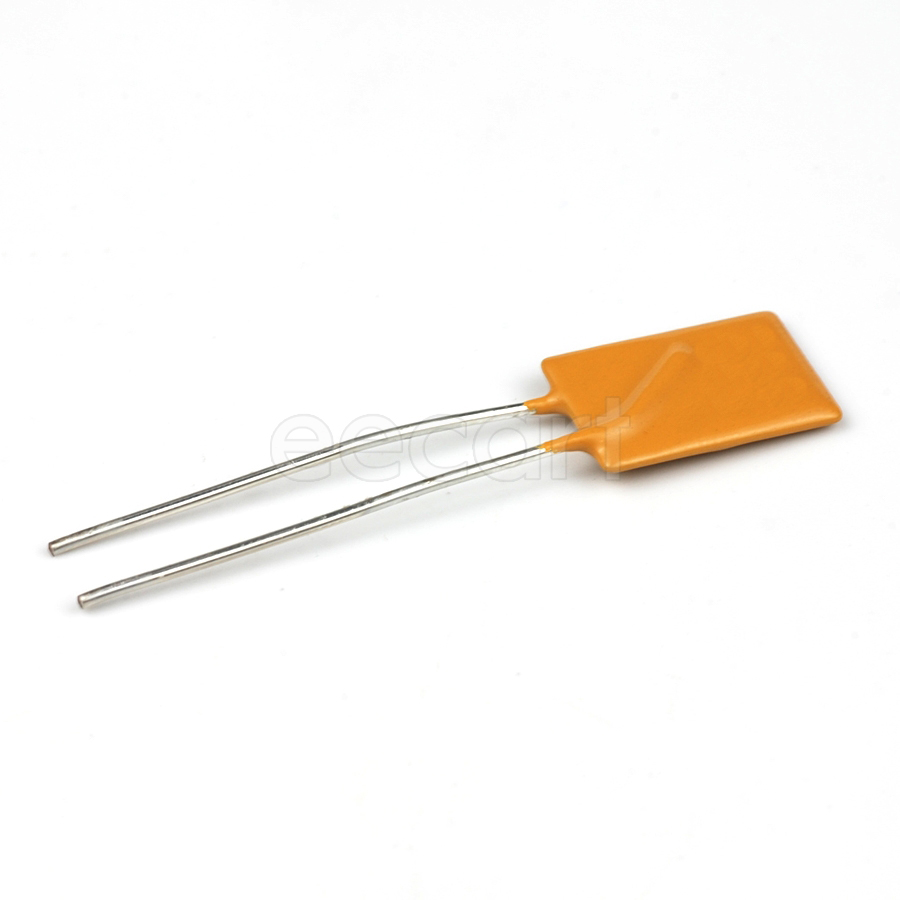

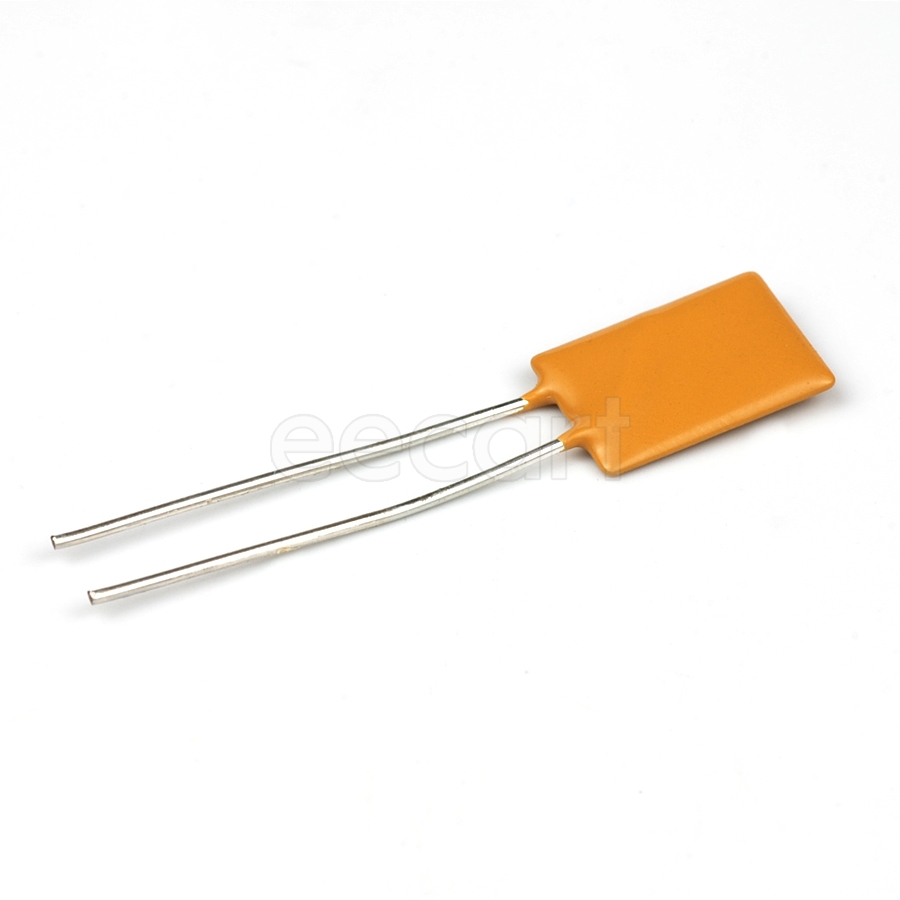

RGEF600
Manufacturer:
Littelfuse
Mfr.Part #:
RGEF600
Datasheet:
Description:
PTC Resettable Fuses Radial Through Hole Hold Current:6 A Trip Current:10.2 A
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 17.1 mm |
| Width | 10.7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 28 mΩ |
| Height | 17.1 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Max Current Rating | 100 A |
| Operating Supply Voltage | 16 V |
| Power Dissipation | 2.8 W |
| Hold Current | 6 A |
| Time to Trip | 3.3 s |
| Trip Current | 10.2 A |
| Maximum Resistance 1 Hour (R1max) | 28 mΩ |
| Minimum Resistance Initial (Rmin) | 10 mΩ |
| Lead Spacing | 5.05 mm |
Stock: 672
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.34197 | $3.41970 |
| 25 | $0.31621 | $7.90525 |
| 50 | $0.29239 | $14.61950 |
| 100 | $0.26930 | $26.93000 |
| 300 | $0.24513 | $73.53900 |
| 500 | $0.22314 | $111.57000 |
| 1000 | $0.20690 | $206.90000 |
| 3000 | $0.18903 | $567.09000 |
| 5000 | $0.17270 | $863.50000 |
