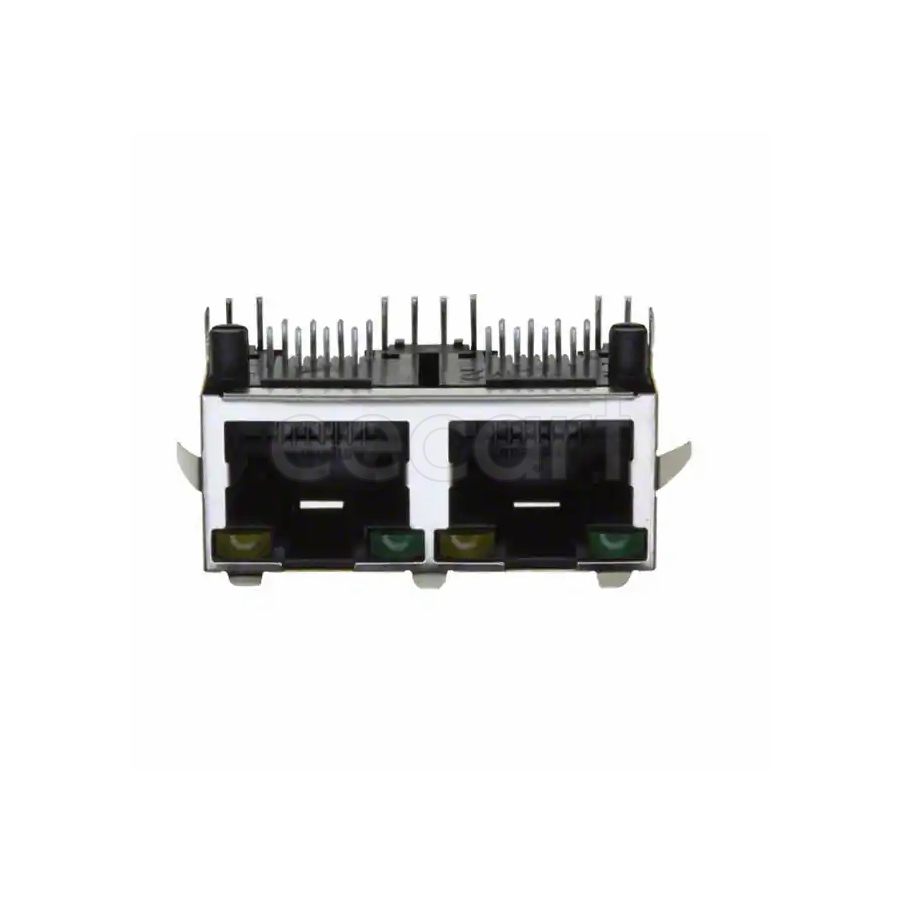

RJHSE-5384-02
Manufacturer:
Amphenol
Mfr.Part #:
RJHSE-5384-02
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 32.26 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 13.843 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.03 mm |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Up |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing | |
| Insulation Material | |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Fastening Type | |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Contact Mating Length | |
| Number of Positions Loaded | 16 |
| Contact Shape | |
| Contact Finish Thickness - Mating | |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 10
Distributors
pcbx
pcbxUnit Price$5.07446
Ext.Price$5.07446
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.07446 | $5.07446 |
| 10 | $4.36166 | $43.61660 |
| 25 | $3.97005 | $99.25125 |
| 50 | $3.61360 | $180.68000 |
| 100 | $3.28917 | $328.91700 |
