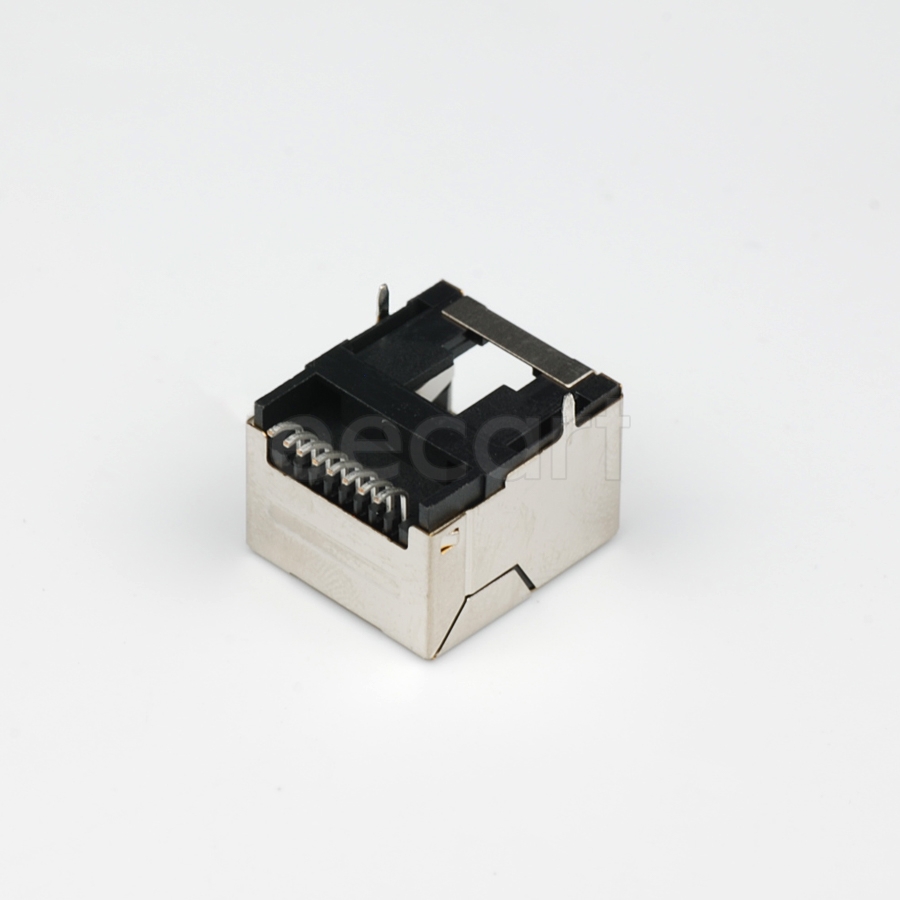

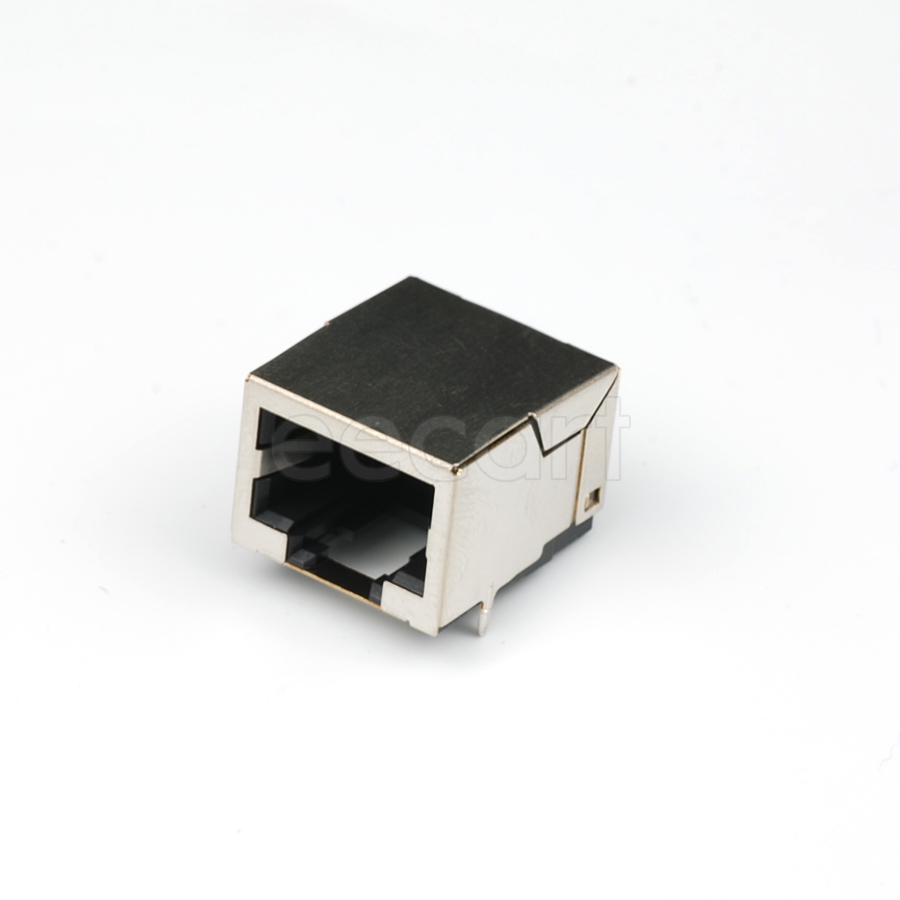

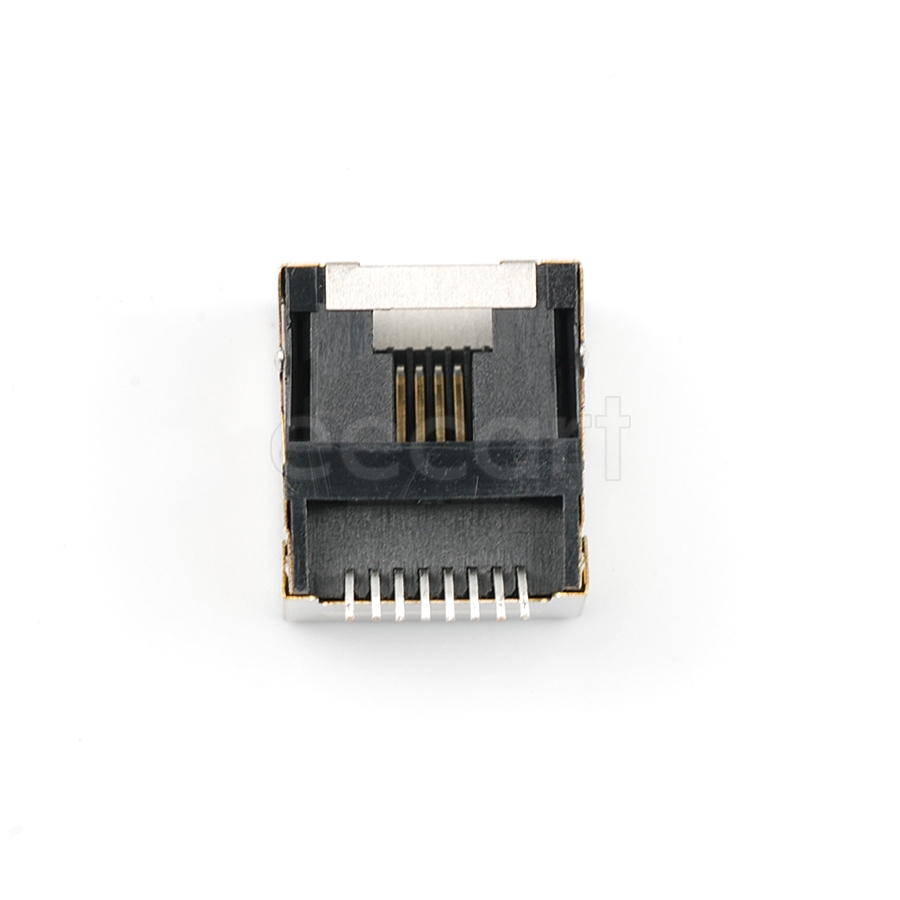

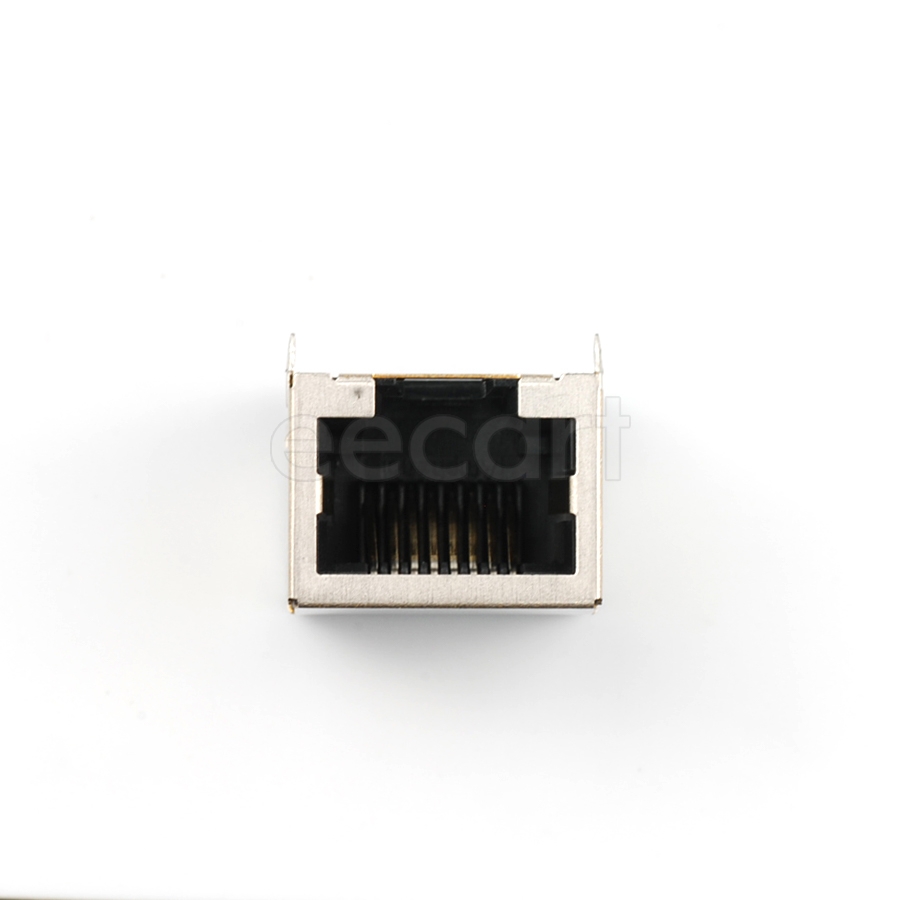

RJLSE4238101T
Manufacturer:
Amphenol
Mfr.Part #:
RJLSE4238101T
Datasheet:
Description:
Modular / Ethernet Connectors SMD/SMT RJ45 Male Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Length | 15.74 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.319 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 17.53 mm |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Down |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Number of Positions Loaded | 8 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
