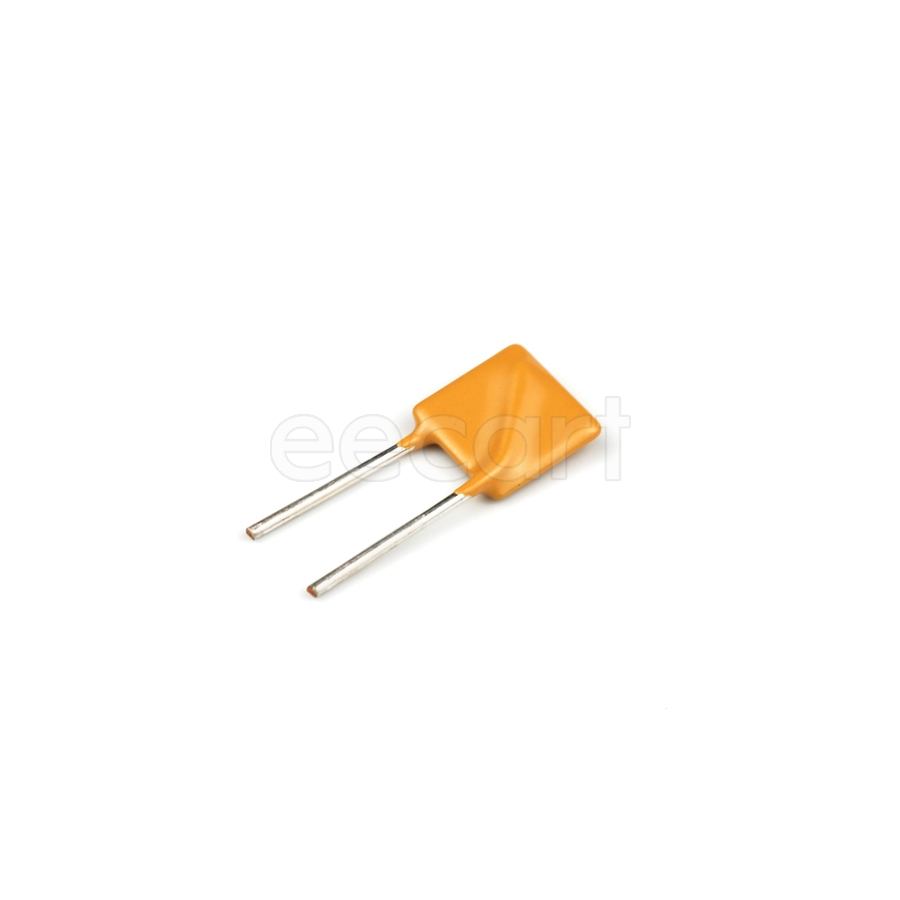

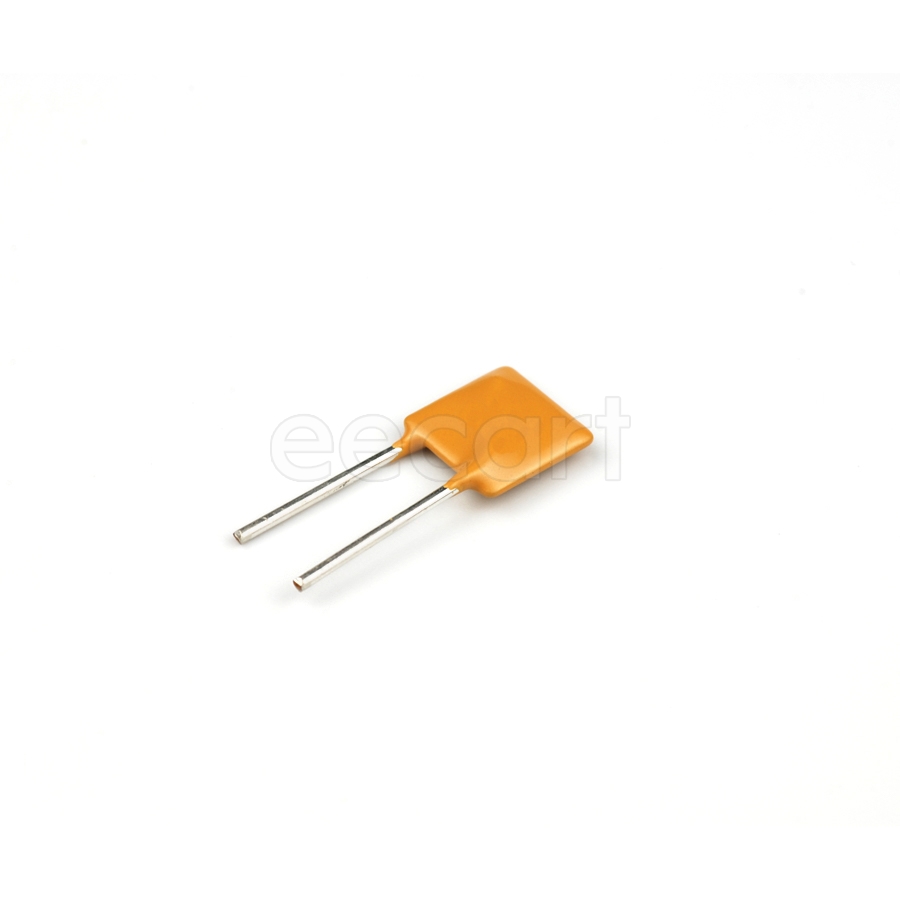

RL16-500
Manufacturer:
RUILON
Mfr.Part #:
RL16-500
Datasheet:
Description:
PTC Resettable Fuses Radial Through Hole Hold Current:5 A Voltage Rating:16 V Trip Current:10 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 16 V |
| Thickness | 3 mm |
| RoHS | Compliant |
| Max Current Rating | 100 A |
| Hold Current | 5 A |
| Trip Current | 10 A |
| Maximum Resistance 1 Hour (R1max) | 25 mΩ |
| Minimum Resistance Initial (Rmin) | 14 mΩ |
| Lead Spacing | 5.1 mm |
Stock: 328
Distributors
pcbx
pcbxUnit Price$0.10531
Ext.Price$0.10531
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10531 | $0.10531 |
| 10 | $0.09378 | $0.93780 |
| 50 | $0.08352 | $4.17600 |
| 100 | $0.07307 | $7.30700 |
| 500 | $0.06392 | $31.96000 |
| 1000 | $0.06065 | $60.65000 |
| 3000 | $0.05754 | $172.62000 |
| 5000 | $0.05459 | $272.95000 |
