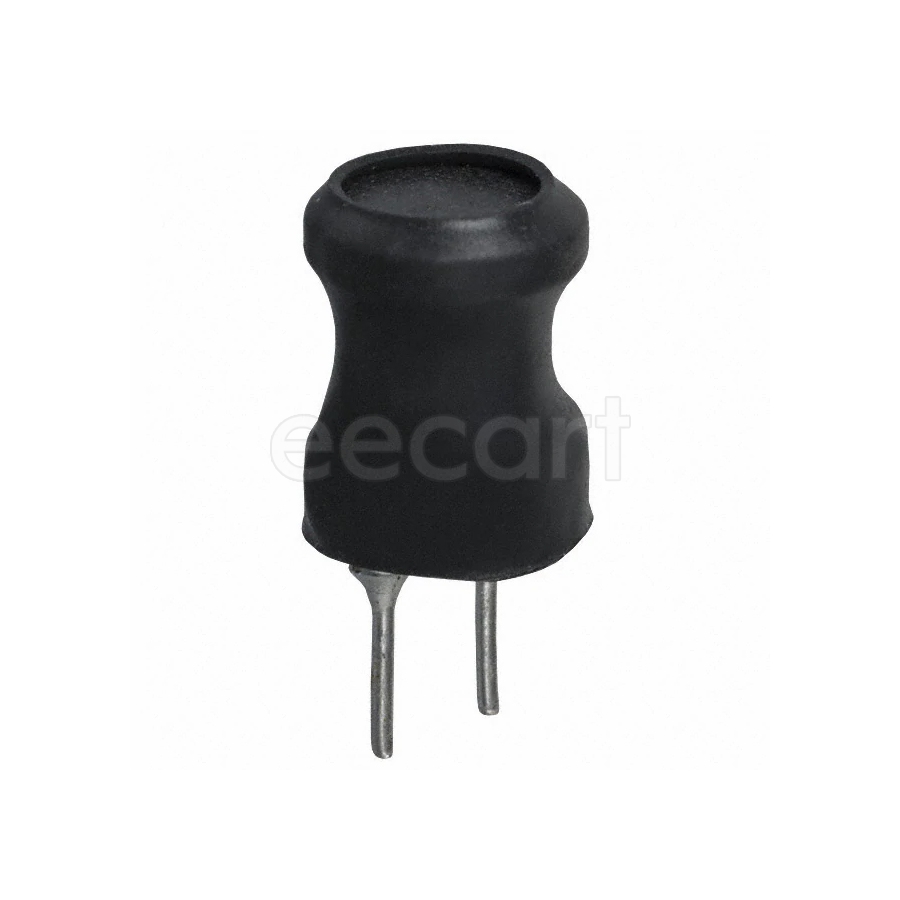

RL622-2R2K-RC
Manufacturer:
Bourns
Mfr.Part #:
RL622-2R2K-RC
Datasheet:
Description:
Fixed Inductors 8.50mmD×11.00mmH Through Hole 2.2 µH 10 % 6.5 A 21 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 11 mm |
| Length | 11 mm |
| Width | 8.5 mm |
| Termination | Radial |
| Diameter | 8.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 11 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 620 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 5 mm |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 100 MHz |
| Q Factor | 20 |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 21 mΩ |
| Test Frequency | 7.96 MHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Max DC Current | 6.5 A |
| DC Current | 6.5 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 327
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.40267 | $4.02670 |
| 25 | $0.39228 | $9.80700 |
| 50 | $0.38216 | $19.10800 |
| 100 | $0.34112 | $34.11200 |
| 300 | $0.32176 | $96.52800 |
| 500 | $0.30350 | $151.75000 |
| 1000 | $0.28042 | $280.42000 |
| 3000 | $0.27480 | $824.40000 |
| 5000 | $0.26930 | $1346.50000 |
