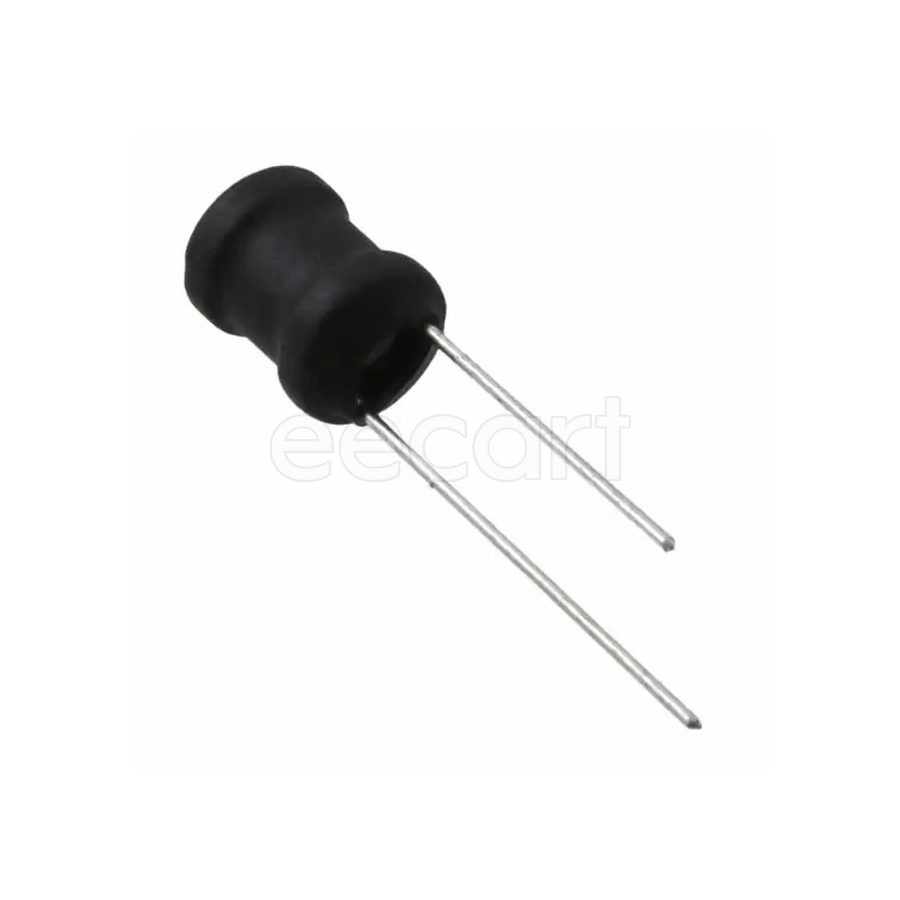

RLB0608-470KL
Manufacturer:
Bourns
Mfr.Part #:
RLB0608-470KL
Datasheet:
Description:
Fixed Inductors 5.00mmD×6.50mmH Through Hole 47 µH 10 % 370 mA 1 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 7.5 mm |
| Length | 6.5 mm |
| Termination | Radial |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 1 Ω |
| Composition(Kit Type) | Wirewound |
| Height | 6.5 mm |
| Material | Steel |
| Packaging | Bulk |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 7 MHz |
| Q Factor | 50 |
| Current Rating | 370 mA |
| DC Resistance (DCR) | 1 Ω |
| Test Frequency | 2.52 MHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 370 mA |
| inductance tolerance | 10 % |
| Max DC Current | 370 mA |
| DC Current | 370 mA |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 659
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.15560 | $1.55600 |
| 50 | $0.14126 | $7.06300 |
| 100 | $0.12824 | $12.82400 |
| 500 | $0.12053 | $60.26500 |
| 1000 | $0.11328 | $113.28000 |
| 3000 | $0.10647 | $319.41000 |
| 5000 | $0.10007 | $500.35000 |
| 10000 | $0.09404 | $940.40000 |
