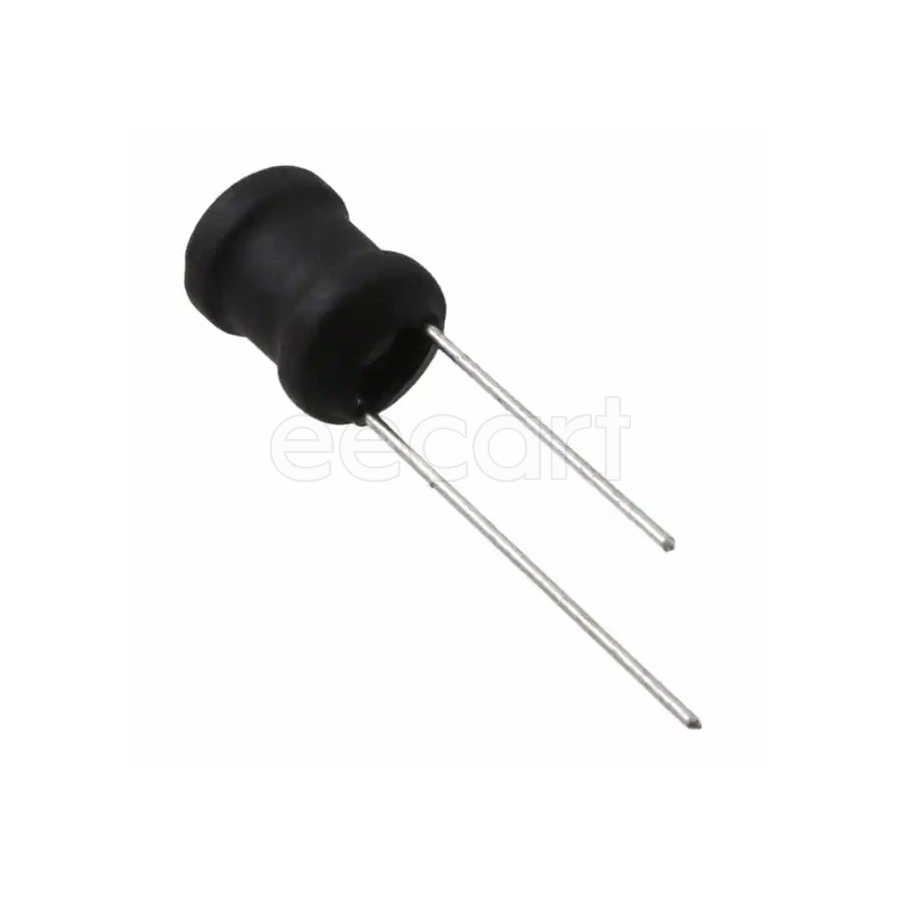

RLB0712-120KL
Manufacturer:
Bourns
Mfr.Part #:
RLB0712-120KL
Datasheet:
Description:
Fixed Inductors 6.70mmD×11.00mmH Through Hole 12 µH 10 % 1 A 80 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 11 mm |
| Length | 10 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 11 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 12 MHz |
| Current Rating | 1 A |
| DC Resistance (DCR) | 80 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 12 µH |
| Core Material | Ferrite |
| Max DC Current | 1 A |
| DC Current | 1 A |
| Type | Wirewound |
Stock: 729
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.14363 | $1.43630 |
| 50 | $0.13064 | $6.53200 |
| 100 | $0.11883 | $11.88300 |
| 500 | $0.11148 | $55.74000 |
| 1000 | $0.10458 | $104.58000 |
| 3000 | $0.09811 | $294.33000 |
| 5000 | $0.09204 | $460.20000 |
| 10000 | $0.08635 | $863.50000 |
