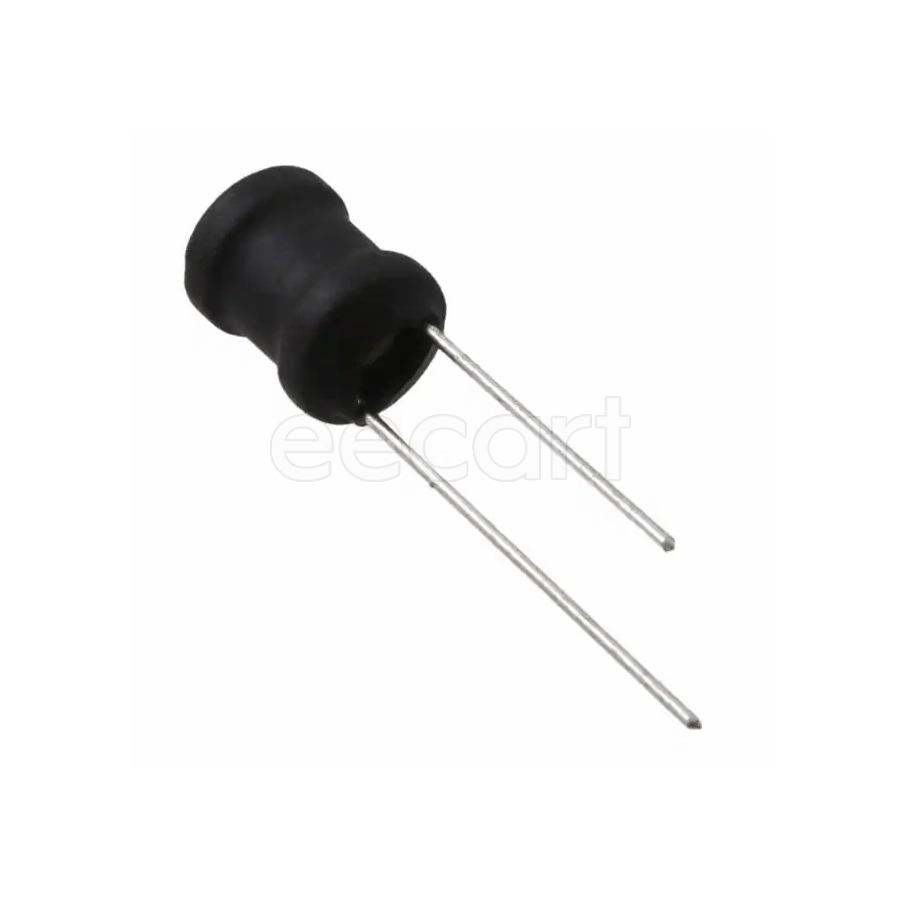

RLB0812-473KL
Manufacturer:
Bourns
Mfr.Part #:
RLB0812-473KL
Datasheet:
Description:
Fixed Inductors 6.70mmD×11.00mmH Through Hole 47 mH 10 % 16 mA 162 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 6.7 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.0076 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Lead Pitch | 3 mm |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 100 kHz |
| Q Factor | 60 |
| Current Rating | 16 mA |
| DC Resistance (DCR) | 162 Ω |
| Test Frequency | 79.6 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 47 mH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Max DC Current | 16 mA |
| DC Current | 16 mA |
| Type | Wirewound |
| Height - Seated (Max) | 11 mm |
Stock: 582
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.15560 | $1.55600 |
| 50 | $0.14126 | $7.06300 |
| 100 | $0.12824 | $12.82400 |
| 500 | $0.11941 | $59.70500 |
| 1000 | $0.11119 | $111.19000 |
| 3000 | $0.10353 | $310.59000 |
| 5000 | $0.09640 | $482.00000 |
| 10000 | $0.08977 | $897.70000 |
