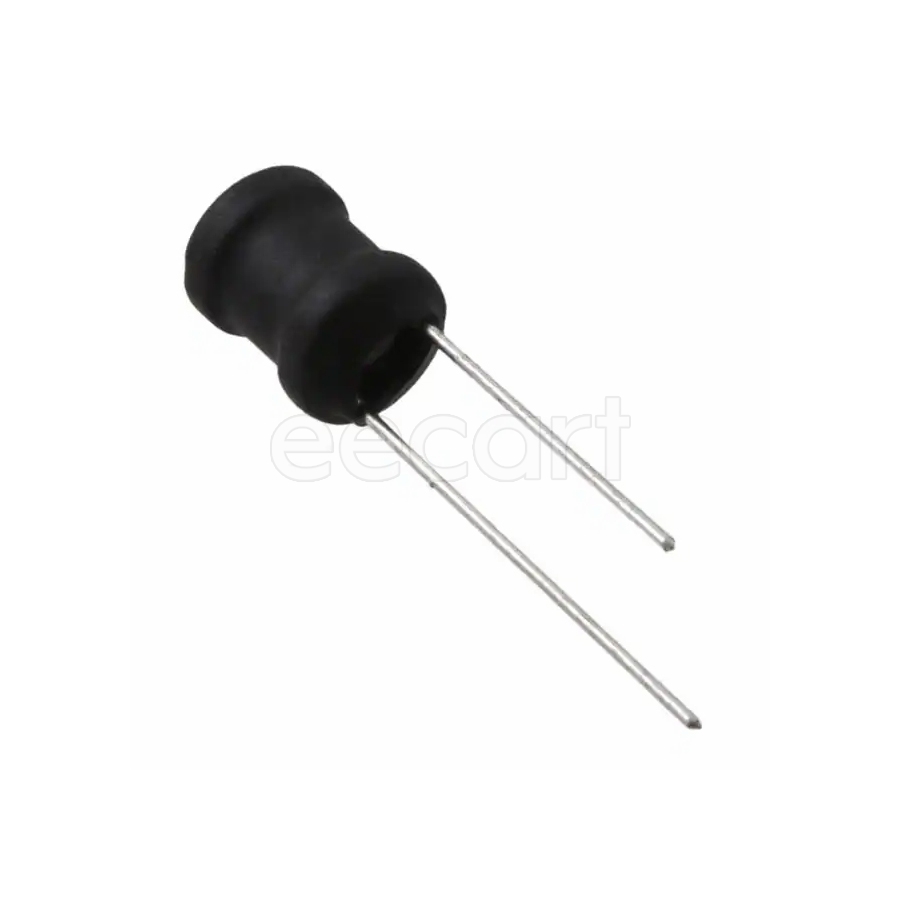

RLB0912-101KL
Manufacturer:
Bourns
Mfr.Part #:
RLB0912-101KL
Datasheet:
Description:
Fixed Inductors 8.70mmD×11.00mmH Through Hole 100 µH 10 % 660 mA 330 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 11 mm |
| Length | 10 mm |
| Termination | Radial |
| Diameter | 8.7 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 330 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Tin |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 7.2 MHz |
| Q Factor | 55 |
| Current Rating | 660 mA |
| DC Resistance (DCR) | 330 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 660 mA |
| inductance tolerance | 10 % |
| Max DC Current | 660 mA |
| DC Current | 660 mA |
| Packaging | Bulk |
| Type | Wirewound |
Stock: 28
Distributors
pcbx
pcbxUnit Price$0.33072
Ext.Price$0.33072
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33072 | $0.33072 |
| 10 | $0.32323 | $3.23230 |
| 25 | $0.32133 | $8.03325 |
| 50 | $0.31945 | $15.97250 |
| 100 | $0.31758 | $31.75800 |
