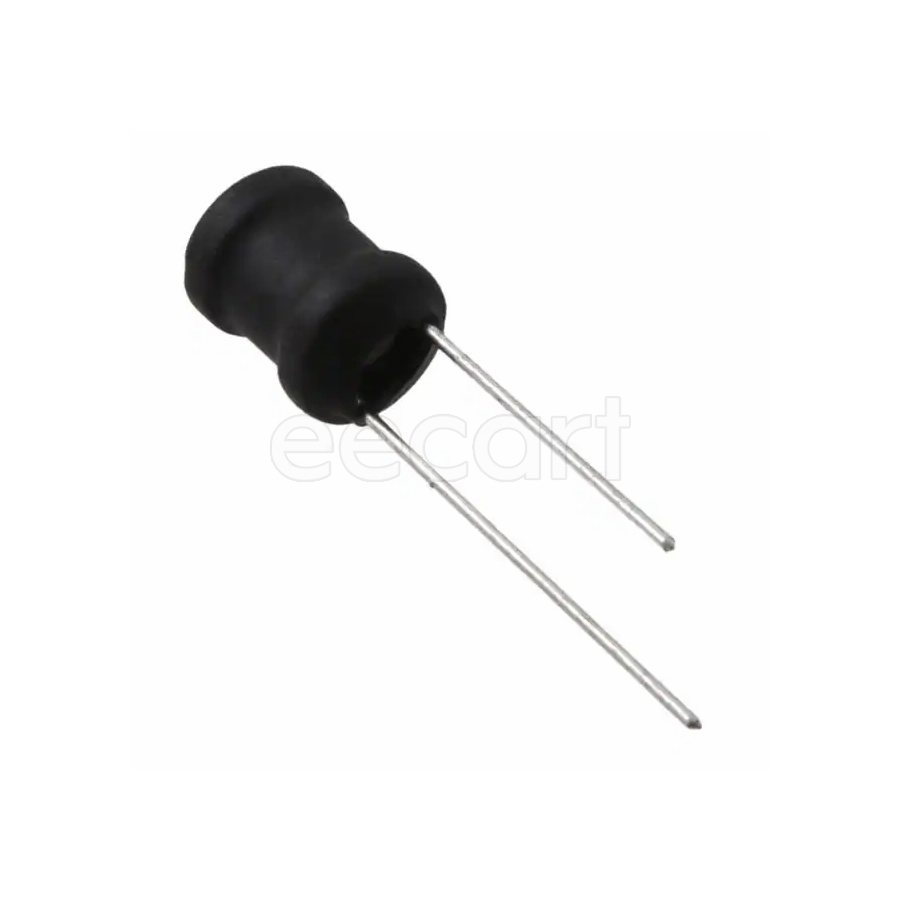

RLB0913-473K
Manufacturer:
Bourns
Mfr.Part #:
RLB0913-473K
Datasheet:
Description:
Fixed Inductors 8.50mmD×12.50mmH Through Hole 47 mH 10 % 55 mA 99 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 12.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 55 mA |
| DC Resistance (DCR) | 99 Ω |
| Test Frequency | 1 kHz |
| Inductance | 47 mH |
| inductance tolerance | 10 % |
| Core Material | Ferrite |
| Self Resonant Frequency | 100 kHz |
| Packaging | Tray |
| Saturation Current | 30 mA |
| Shielding | Unshielded |
| Q Factor | 20 |
| Height - Seated (Max) | 1.02 mm |
| Type | Wirewound |
Stock: 709
Distributors
pcbx
pcbxUnit Price$0.37531
Ext.Price$0.37531
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37531 | $0.37531 |
| 10 | $0.30692 | $3.06920 |
| 25 | $0.26760 | $6.69000 |
| 50 | $0.25219 | $12.60950 |
| 100 | $0.23767 | $23.76700 |
| 300 | $0.22910 | $68.73000 |
| 500 | $0.22084 | $110.42000 |
| 1000 | $0.21287 | $212.87000 |
| 3000 | $0.20457 | $613.71000 |
| 5000 | $0.19660 | $983.00000 |
| 10000 | $0.18894 | $1889.40000 |
