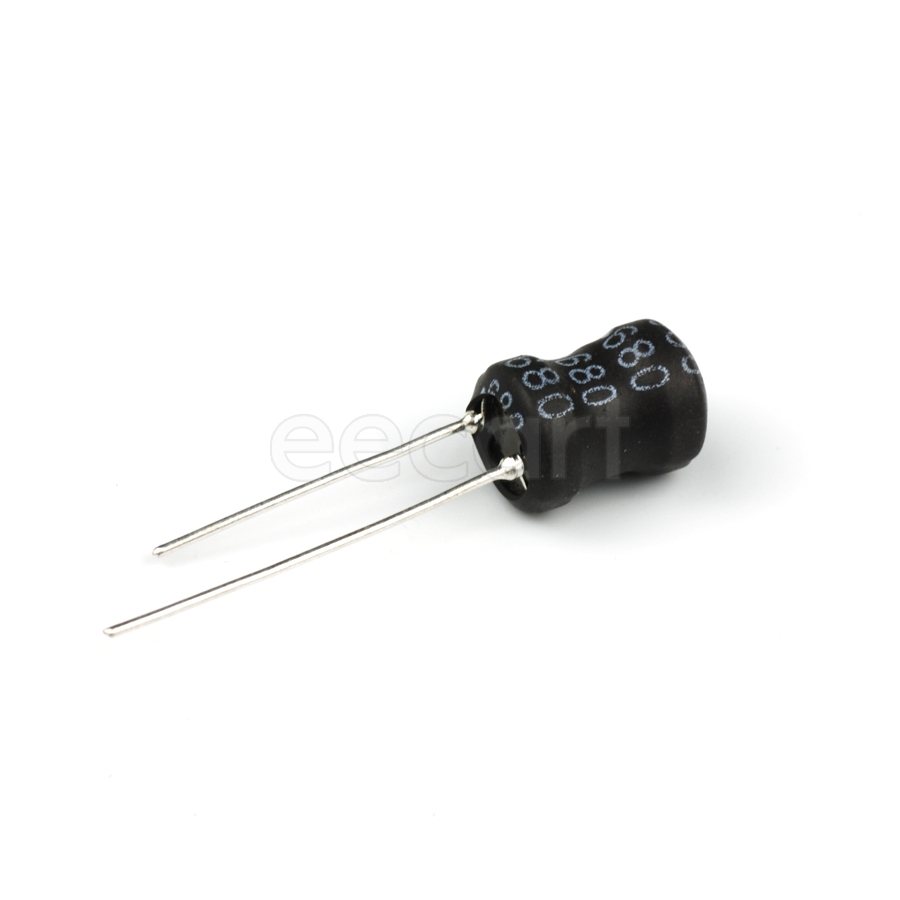

RLB0914-680KL
Manufacturer:
Bourns
Mfr.Part #:
RLB0914-680KL
Datasheet:
Description:
Fixed Inductors 8.70mmD×12.00mmH Through Hole 68 µH 10 % 1.2 A 210 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 13 mm |
| Length | 12 mm |
| Termination | Radial |
| Diameter | 8.7 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Resistance | 210 MΩ |
| Composition(Kit Type) | Wirewound |
| Height | 13 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 4.5 MHz |
| Q Factor | 30 |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 210 mΩ |
| Test Frequency | 2.52 MHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 68 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.2 A |
| inductance tolerance | 10 % |
| Max DC Current | 1.2 A |
| DC Current | 1.2 A |
| Schedule B | 8504500000 |
| Packaging | Reel |
| Type | Wirewound |
Stock: 58
Distributors
pcbx
pcbxUnit Price$0.21202
Ext.Price$0.21202
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21202 | $0.21202 |
| 10 | $0.20809 | $2.08090 |
