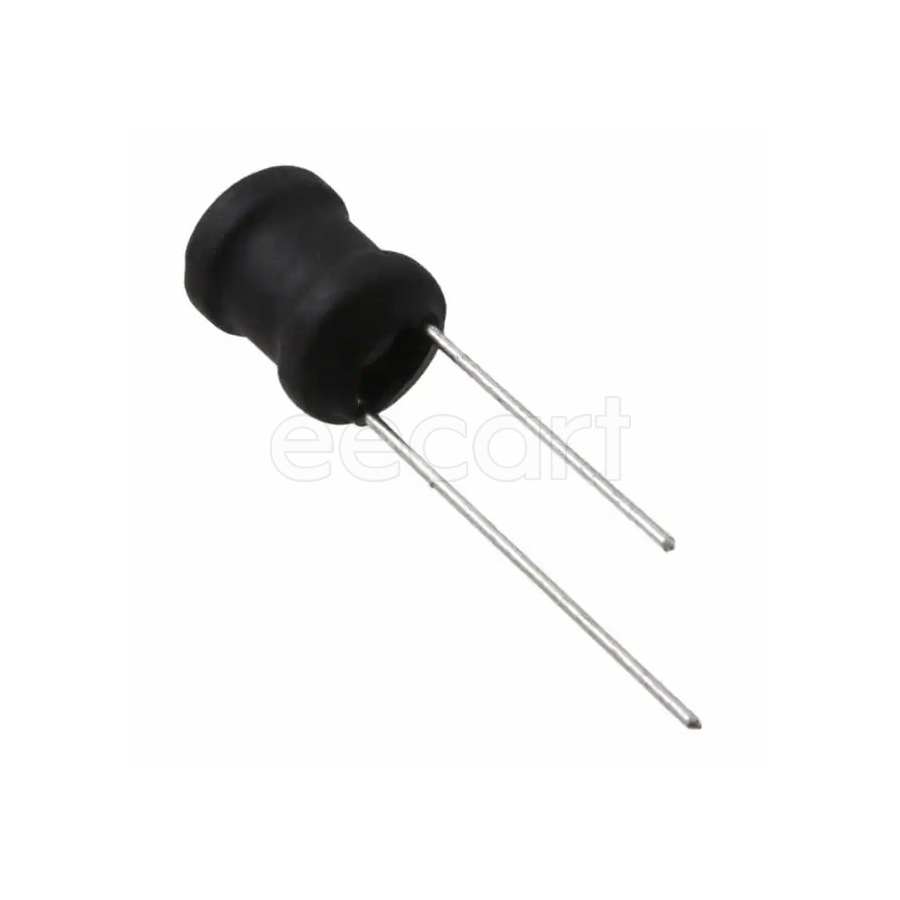

RLB9012-100KL
Manufacturer:
Bourns
Mfr.Part #:
RLB9012-100KL
Datasheet:
Description:
Fixed Inductors 9.00mmD×12.20mmH Through Hole 10 µH 10 % 3.4 A 45 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 12.2 mm |
| Length | 12.2 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 12.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 14 MHz |
| Q Factor | 50 |
| Current Rating | 3.4 A |
| DC Resistance (DCR) | 45 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.4 A |
| inductance tolerance | 10 % |
| Max DC Current | 3.4 A |
| DC Current | 3.4 A |
| Schedule B | 8504500000 |
| Packaging | Bulk |
| Type | Wirewound |
Stock: 514
Distributors
pcbx
pcbxUnit Price$0.34454
Ext.Price$0.34454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34454 | $0.34454 |
| 10 | $0.26332 | $2.63320 |
| 25 | $0.24280 | $6.07000 |
| 50 | $0.24194 | $12.09700 |
| 100 | $0.24109 | $24.10900 |
| 300 | $0.21991 | $65.97300 |
| 500 | $0.20059 | $100.29500 |
| 1000 | $0.18296 | $182.96000 |
