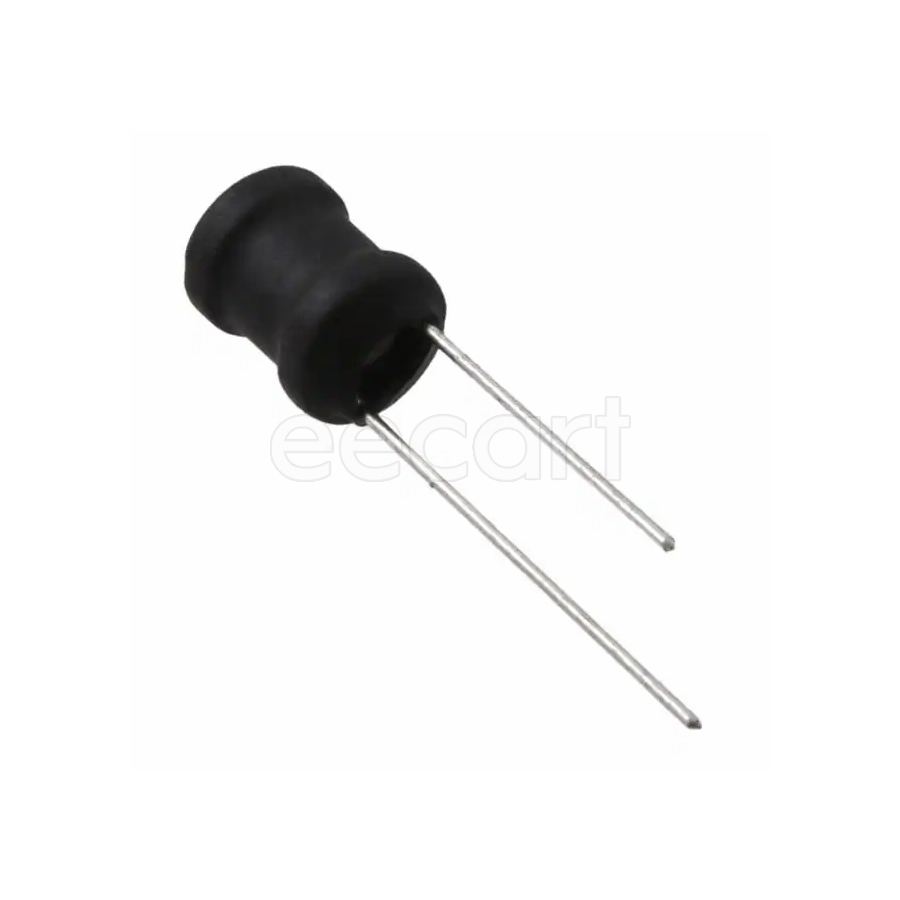

RLB9012-102KL
Manufacturer:
Bourns
Mfr.Part #:
RLB9012-102KL
Datasheet:
Description:
Fixed Inductors 9.00mmD×12.20mmH Through Hole 1 mH 10 % 510 mA 2.9 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 12.2 mm |
| Termination | Radial |
| Diameter | 9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 12.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 1.3 MHz |
| Q Factor | 20 |
| Current Rating | 510 mA |
| DC Resistance (DCR) | 2.9 Ω |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| RMS Current (Irms) | 510 mA |
| inductance tolerance | 10 % |
| Max DC Current | 510 mA |
| DC Current | 510 mA |
| Schedule B | 8504500000 |
| Packaging | Bulk |
| Height - Seated (Max) | 12.2 mm |
| Type | Wirewound |
Stock: 7
Distributors
pcbx
pcbxUnit Price$0.45235
Ext.Price$0.45235
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45235 | $0.45235 |
| 10 | $0.44189 | $4.41890 |
| 25 | $0.43839 | $10.95975 |
| 50 | $0.43492 | $21.74600 |
| 100 | $0.43146 | $43.14600 |
