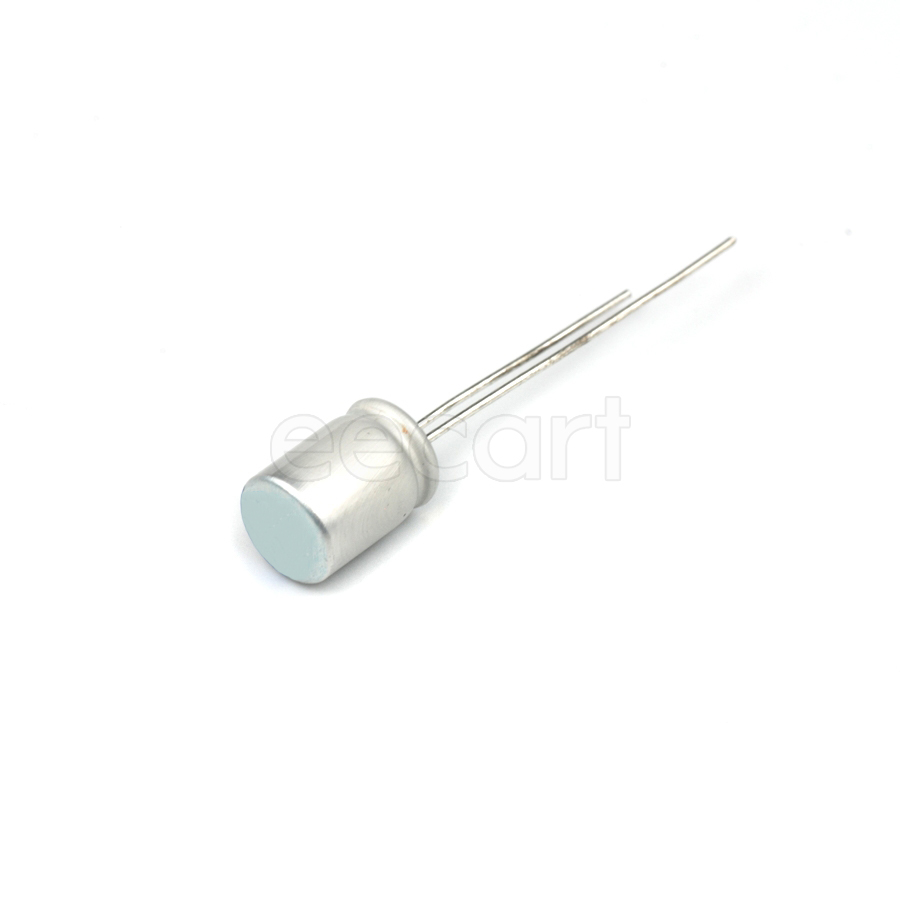

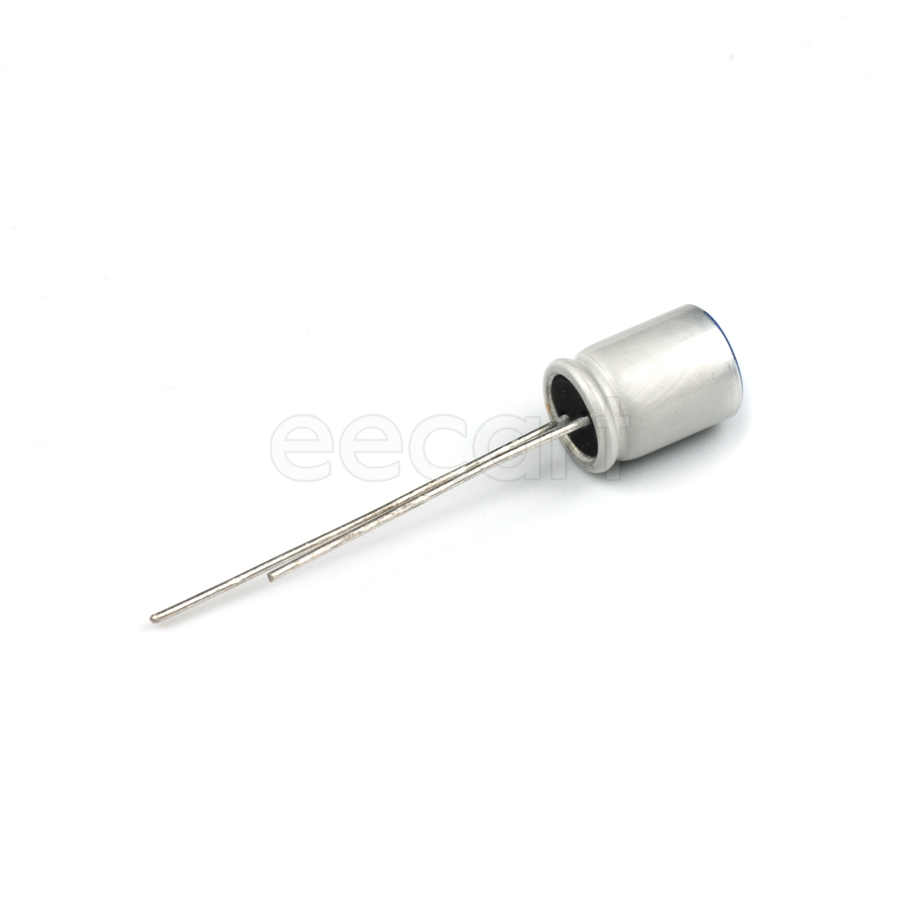

RNS1E100MDS1
Manufacturer:
Nichicon
Mfr.Part #:
RNS1E100MDS1
Datasheet:
Description:
Polymer Capacitors Radial,6.30mm×7.00mm Through Hole 10 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 63 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.7 A |
| Height - Seated (Max) | 8 mm |
| Length | 7 mm |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 50 µA |
| Dissipation Factor | 0.06 % |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 2.4892 mm |
| Ripple Current (AC) | 1.7 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Packaging | Bulk |
Stock: 4731
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.23254 | $2.32540 |
| 25 | $0.23053 | $5.76325 |
| 50 | $0.22854 | $11.42700 |
| 100 | $0.22656 | $22.65600 |
| 300 | $0.21695 | $65.08500 |
| 500 | $0.20775 | $103.87500 |
| 1000 | $0.20176 | $201.76000 |
| 3000 | $0.19313 | $579.39000 |
| 5000 | $0.18487 | $924.35000 |
| 10000 | $0.17697 | $1769.70000 |
