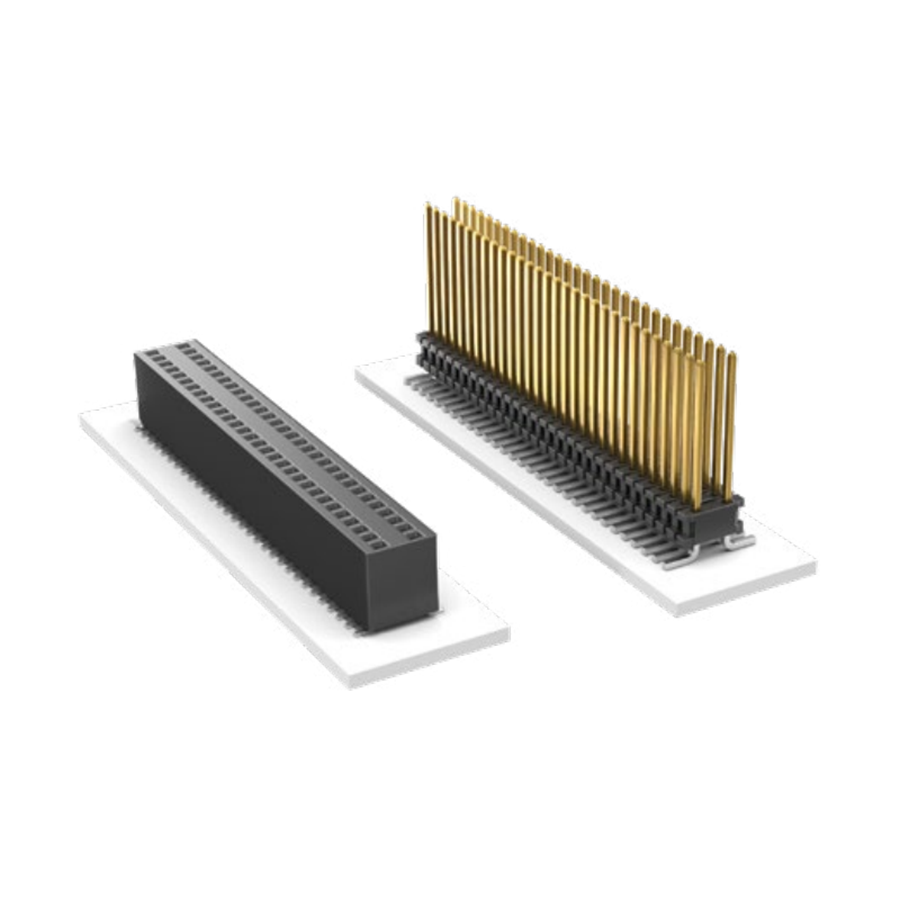

RSM-110-02-L-D
Manufacturer:
Samtec
Mfr.Part #:
RSM-110-02-L-D
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:20 Number of Rows:2 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 12.95 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 3.1 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Mounting Angle | Vertical |
Stock: 132
Distributors
pcbx
pcbxUnit Price$2.84093
Ext.Price$2.84093
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.84093 | $2.84093 |
| 10 | $2.69979 | $26.99790 |
| 25 | $2.56564 | $64.14100 |
| 50 | $2.16758 | $108.37900 |
| 100 | $1.83128 | $183.12800 |
| 300 | $1.54716 | $464.14800 |
| 500 | $1.30712 | $653.56000 |
| 1000 | $1.10432 | $1104.32000 |
| 3000 | $0.93299 | $2798.97000 |
| 5000 | $0.78824 | $3941.20000 |
