RT061412PNHEC03
Manufacturer:
Amphenol
Mfr.Part #:
RT061412PNHEC03
Datasheet:
Description:

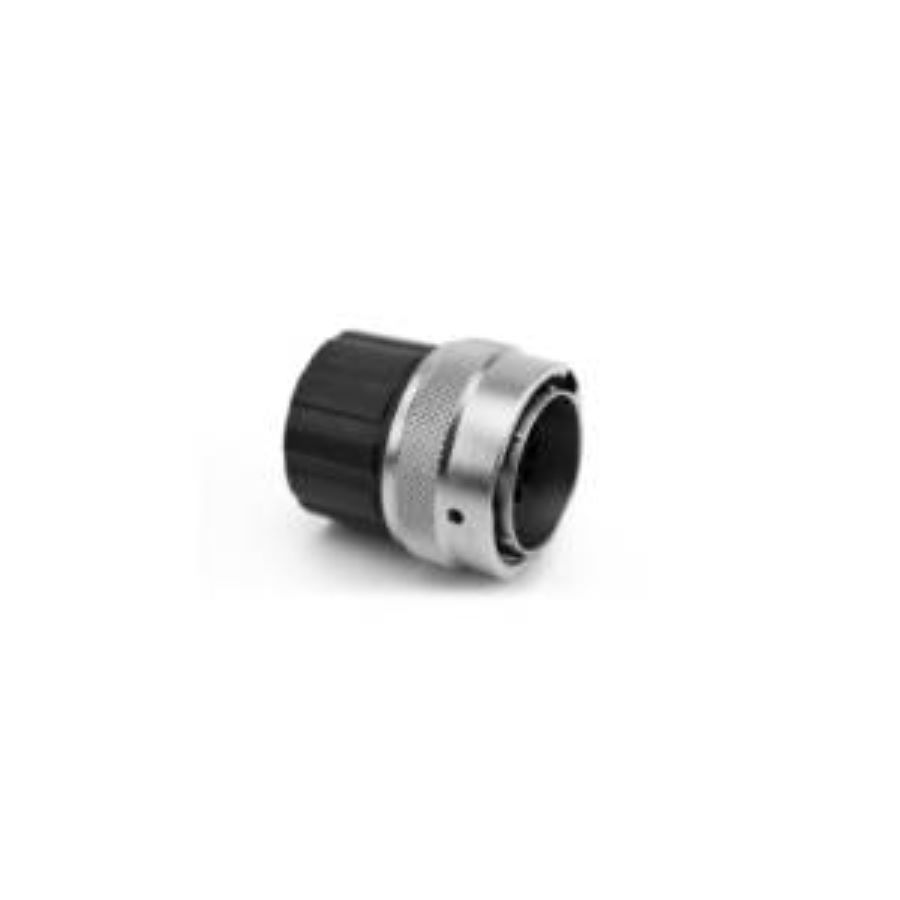

Circular Connectors Free Hanging (In-Line) Pin (Male) Crimp Plug Housing
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 500 V |
| RoHS | Compliant |
| Features | Backshell, Coupling Nut |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Orientation | N (Normal) |
| Color | Silver |
| Shielding | Shielded |
| Connector Type | Plug Housing |
| Number of Positions | 12 |
| Fastening Type | Bayonet Lock |
| Contact Gender | Pin (Male) |
| Shell Material | Zinc Alloy |
| IP Rating(Ingress Protection) | IP67 |
Stock: 36
Distributors
pcbx
pcbxUnit Price$18.76827
Ext.Price$18.76827
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $18.76827 | $18.76827 |
| 10 | $15.95213 | $159.52130 |
| 25 | $14.95700 | $373.92500 |
| 50 | $14.23714 | $711.85700 |
| 100 | $13.04793 | $1304.79300 |
| 300 | $12.60572 | $3781.71600 |
| 500 | $12.17847 | $6089.23500 |
