SMD2018P150TF
Manufacturer:
RUILON
Mfr.Part #:
SMD2018P150TF
Datasheet:
Description:

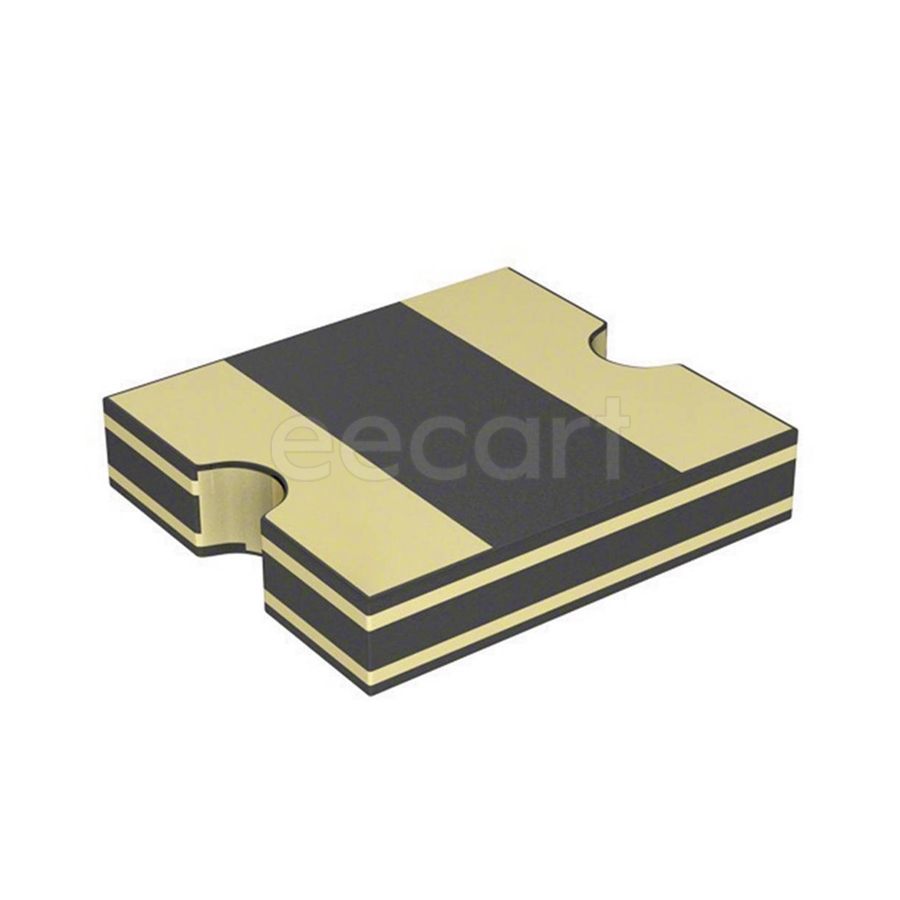

PTC Resettable Fuses 2018 SMD/SMT Hold Current:1.5 A Voltage Rating:15 V Trip Current:3 A
| Parameter | Value |
|---|---|
| Min Operating Temperature | -40 °C |
| Hold Current | 1.5 A |
| RoHS | Compliant |
| Max Operating Temperature | 85 °C |
| Trip Current | 3 A |
| Max Current Rating | 100 A |
| Packaging | Reel |
| Height - Seated (Max) | 0.8 mm |
| Minimum Resistance Initial (Rmin) | 50 mΩ |
| Maximum Resistance 1 Hour (R1max) | 170 mΩ |
| Time to Trip | 800 ms |
| Voltage Rating | 15 V |
Stock: 1823
Distributors
pcbx
pcbxUnit Price$0.10234
Ext.Price$0.10234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10234 | $0.10234 |
| 10 | $0.09090 | $0.90900 |
| 50 | $0.08074 | $4.03700 |
| 100 | $0.07108 | $7.10800 |
| 500 | $0.06257 | $31.28500 |
| 1000 | $0.05767 | $57.67000 |
| 3000 | $0.05316 | $159.48000 |
| 5000 | $0.04900 | $245.00000 |
