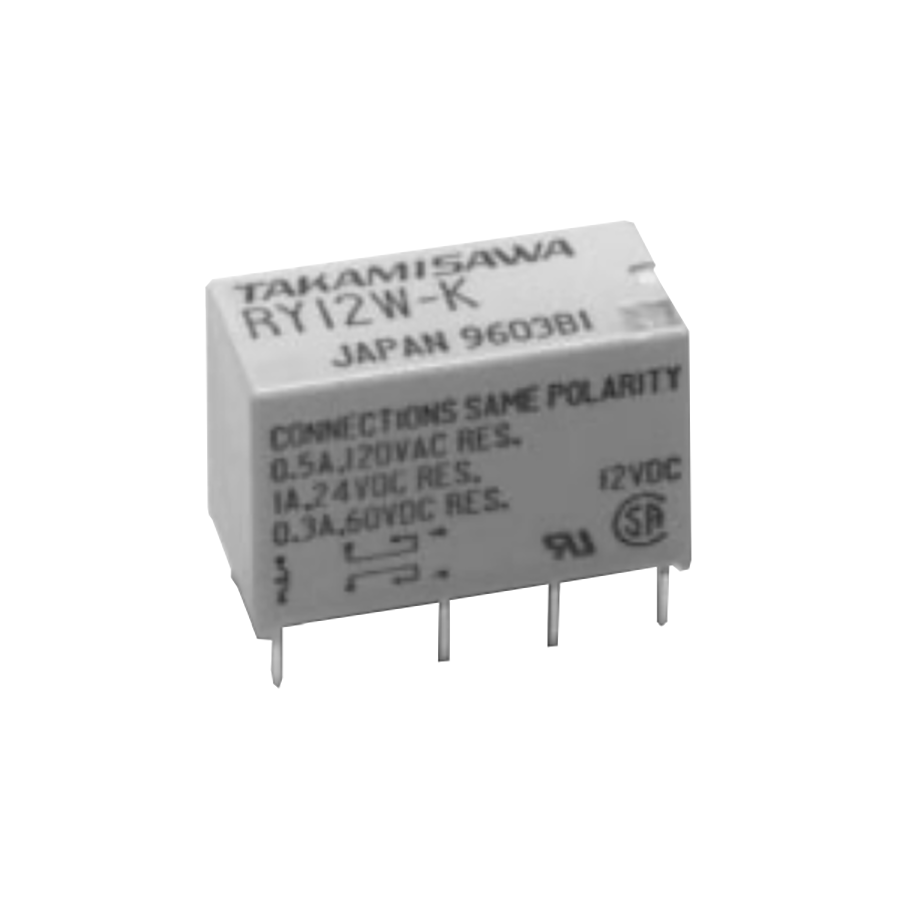

RY24W-K
Manufacturer:
Fujitsu
Mfr.Part #:
RY24W-K
Datasheet:
Description:
Signal Relays Through Hole 8.33 mA Non-Latching Coil Voltage (DC):24 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 20.2 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 120 V |
| Number of Pins | 8 |
| Height | 12.5 mm |
| Packaging | Tray |
| Depth | 9.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 1.25 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Number of Contacts | 2 |
| Throw Configuration | DPDT |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 8.33 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 2.88 kΩ |
| Relay Type | Slim |
| Operate Time | 6 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 200 mW |
| Termination Style | PC Pin |
| Switching Voltage | 120 VAC, 60 VDC |
| Coil Power | 200 mW |
| Coil Voltage (AC) | 24 V |
| Contact Form | 2 Form C (DPDT-NO, NC) |
