RT9742CGJ5
Manufacturer:
Richtek
Mfr.Part #:
RT9742CGJ5
Datasheet:
Description:

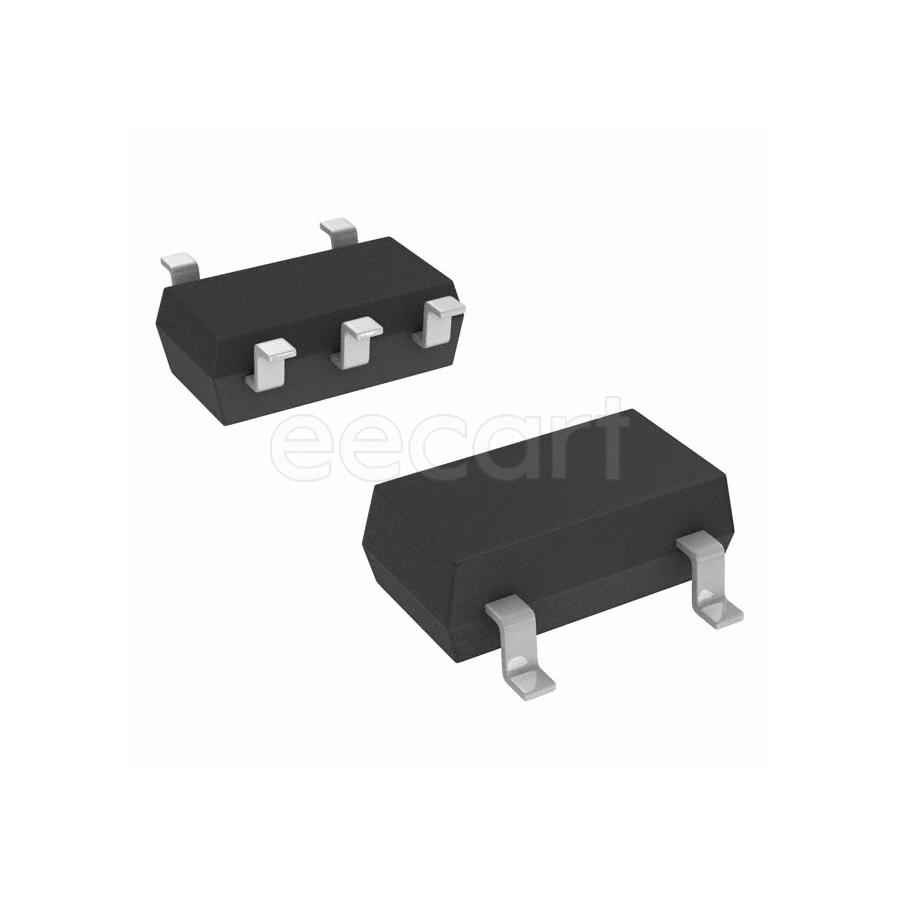

Power Switch ICs - Power Distribution TSOT-23-5 SMD/SMT Turn-On Delay Time:2.2 ms Turn-Off Delay Time:2.5 ms 112 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 23 |
| Resistance | 70 mΩ |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | USB Switch |
| Interface | On/Off |
| Output Current | 2 A |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Output Type | N-Channel |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 2 A |
| Turn-On Delay Time | 2.2 ms |
| Turn-Off Delay Time | 2.5 ms |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Nominal Input Voltage | 6 V |
| Fault Protection | Over Temperature, Reverse Current |
| On Resistance (RON) | 112 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 2.9 A |
Stock: 5630
Distributors
pcbx
pcbxUnit Price$0.18298
Ext.Price$0.18298
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18298 | $0.18298 |
| 10 | $0.16113 | $1.61130 |
| 50 | $0.14189 | $7.09450 |
| 100 | $0.12107 | $12.10700 |
| 500 | $0.10331 | $51.65500 |
| 1000 | $0.09874 | $98.74000 |
| 3000 | $0.09437 | $283.11000 |
| 5000 | $0.08840 | $442.00000 |
