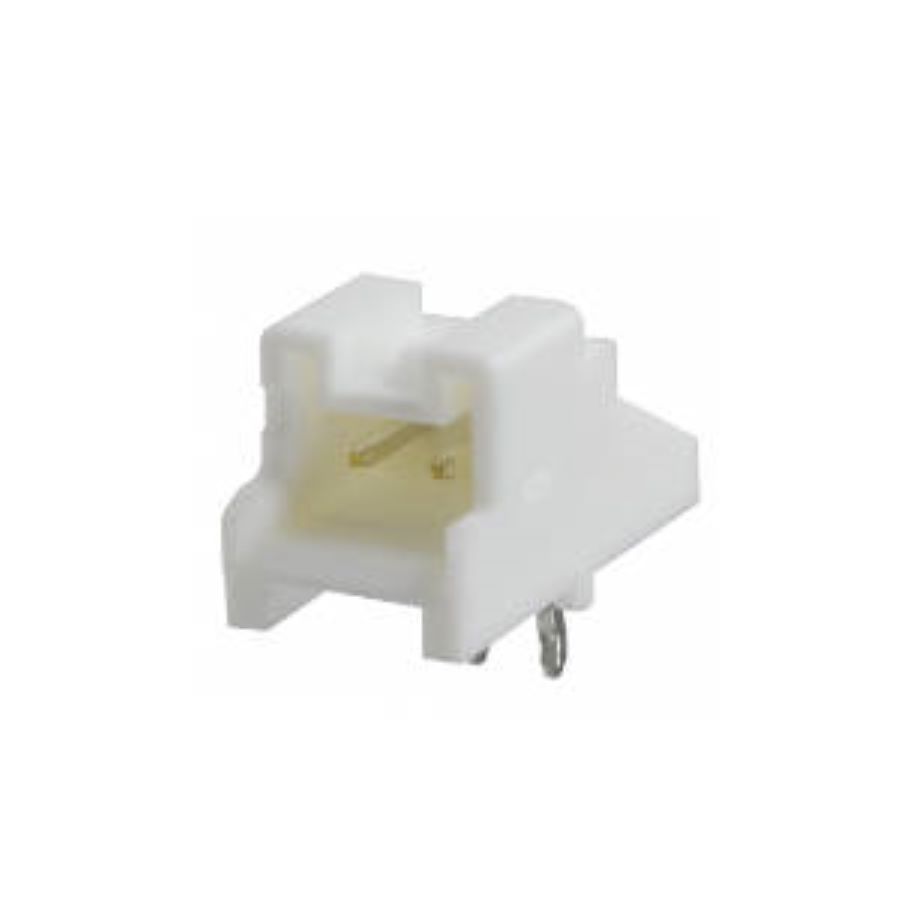

S02B-PASK-2(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S02B-PASK-2(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, PCB |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 11.7 mm |
| size length | 6.00 mm |
| size height | 6.50 mm |
| Housing Color | White |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.2 mm |
| Termination Post Length | 3.4 mm |
Stock: 14684
Distributors
pcbx
pcbxUnit Price$0.11520
Ext.Price$0.11520
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11520 | $0.11520 |
| 10 | $0.10266 | $1.02660 |
| 50 | $0.09149 | $4.57450 |
| 100 | $0.08423 | $8.42300 |
| 500 | $0.07754 | $38.77000 |
| 1000 | $0.07139 | $71.39000 |
| 3000 | $0.06613 | $198.39000 |
| 5000 | $0.06125 | $306.25000 |
